| Product Name: | Camouflaged Tower | Material: | Angle SteelQ345/Q235 |
|---|---|---|---|
| Appearance Treatment: | Hot-dip Galvanized/powder Coated/painting | Height Of Tower: | 10m-50m/Customized |
| Connection Structure: | Flange Connection | Design Wind Speed: | 30m/s |
| Antenna Type: | GSM, RRU,CDMA, MW Etc. | Branch Type: | Pine/Palm |
| Lifetime: | More Than 30 Years | ||
| High Light: | Bionic Tree Camouflaged Cell Tower,Disguised Camouflaged Cell Tower,10m Disguised Cell Tower |
||

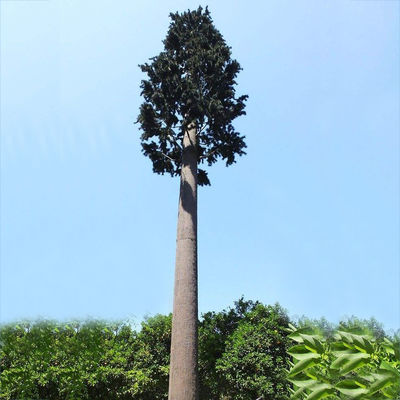

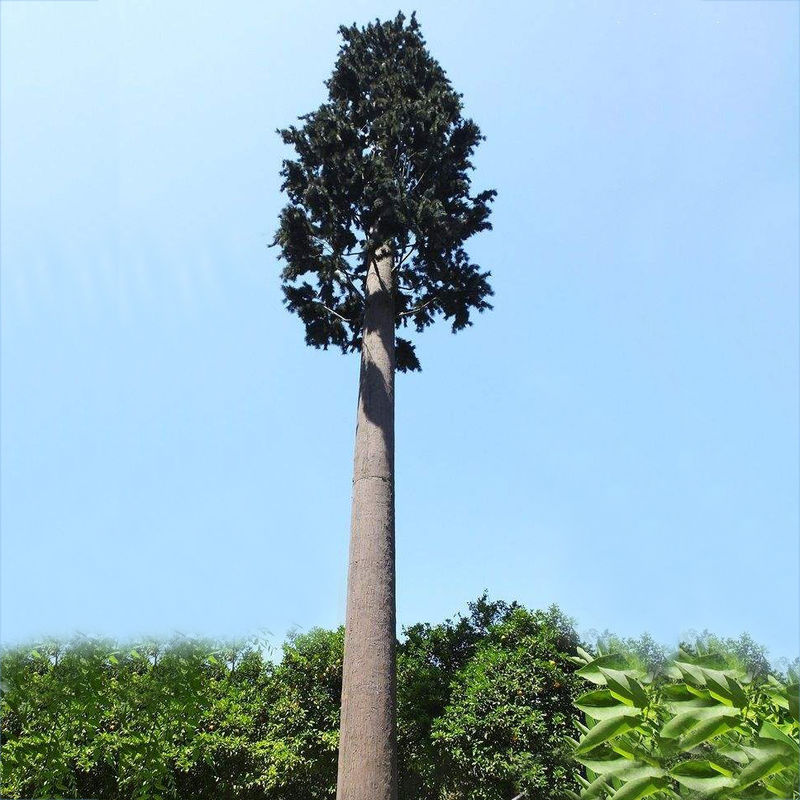

Bionic tower bionic tree signal tower outdoor landscape bionic tree tower
Hebei Changtong Steel Structure Co., Ltd.
Bionic tree, also known as bionic tower and bionic communication tower, belongs to communication tower.
major function
It is mainly used for base station signal transmission, installation of 5g antenna, installation of monitoring camera, etc.
Application scenarios
Application of forest, park, scenic area, city.
structural style
It is mainly steel plate rolled steel pipe structure.
Structure content
Q345B steel is generally used, all of which are hot-dip galvanized for anti-corrosion treatment, and the connecting bolts are grade 8.8. Lightning rod is set on the top of the tower, and the lightning protection grounding resistance is less than or equal to 10 ohm.
technical parameter
Anti wind speed: 30m / s, anti icing: 8mm, seismic intensity: 8 degrees, working temperature: - 30 - + 55 ℃, verticality: 1 / 1000.
Height dimension
10m-30m.
Product features
The steel plate is used as the tower body material, which has small wind load coefficient and strong wind resistance. The tower body adopts external flange or plug connection, which is not easy to damage and low maintenance cost
| Raw Material | ||||
|
No.1
|
Grade | Mild Steel | High Tensile Steel | |
|
GB/T 700:Q235B, Q235C,Q235D ASTM A36 EN10025: S235JR, S235J0,S235J2 |
GB/T1591:Q345B, Q345C,Q3455D ASTM A572 Gr50 EN10025: S355JR, S355J0,S355J2 |
|||
|
No.2
|
Design Wind Speed |
Up to 250km/h Or can be customized |
||
| No.3 | Acceptable Deflection | O.5~1.0 degree | ||
| No.4 | Tension Strength | 360~510 MPA | 470~630 MPA | |
| No.5 |
Yield strength (t≤16mm) (Mpa) |
355 | 235 | |
| No.6 | Elongation (%) | 20 | 24 | |
| No.7 | Impact strength KV (J) | 27(20°C)---Q235B(S235JR) | 27(20°C)---Q345B(S355JR) | |
| 27(0°C)---Q235C(S235J0) | 27(0°C)---Q345C(S355J0) | |||
| 27(-20°C)---Q235D(S235J2) | 27(-20°C)---Q345D(S355J2) | |||
| Blots & Nuts | ||||
| No.1 | Grade | Grade 4.8, 6.8, 8.8 | ||
| No.2 | Standards for mechanical properties | |||
| No.3 | Bolts | ISO 898-1 | ||
| No.4 | Nuts | ISO 898-2 | ||
| No.5 | Washers | ISO 6507-1 | ||
| No.6 | Standards for Dimensions | |||
| Bolts | DIN7990, DIN931, DIN933 | |||
| Nuts | ISO4032, ISO4034 | |||
| Welding | ||||
| No.1 | Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | ||
| No.2 | Standard | AWS D1.1 | ||
| Marking | ||||
| Method of marking of the numbers | Hydraulic Press Stamping | |||
| Galvanized | ||||
| No.1 | Galvanization standard of steel sections | ISO 1461 or ASTM A123 | ||
| No.2 | Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | ||
| Test | ||||
| Factory test |
Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Hammer test |
|||
