| Place of Origin: | China |
| Brand Name: | ChangTong |
| Certification: | ISO9001:2008 |
| Model Number: | JGT190409-2 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD1000-15000 |
| Packaging Details: | Container transpor, the general situation of the tower for metal reinforcement bind. |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000Tons/year |
| Product Name: | Mobile Cell Tower | Material: | SteelQ345/Q235/ASTM A36 A572 Gr50 |
|---|---|---|---|
| Appearance Treatment: | Hot-dip Galvanized/powder Coated/painting | Height Of Tower: | 15m-80m/Customized |
| Connection Structure: | Flange Connection/bolts Connection | Maximum Design Wind Speed: | 30m/s |
| Quantity Of Platform: | 2/3/Customized | Antenna Type: | GSM, RRU,CDMA, MW Etc. |
| Lifetime: | More Than 30 Years | ||
| High Light: | Microwave Monopole Transmission Line Tower,Steel Monopole Transmission Line Tower,45M Monopole Transmission Line Tower |
||

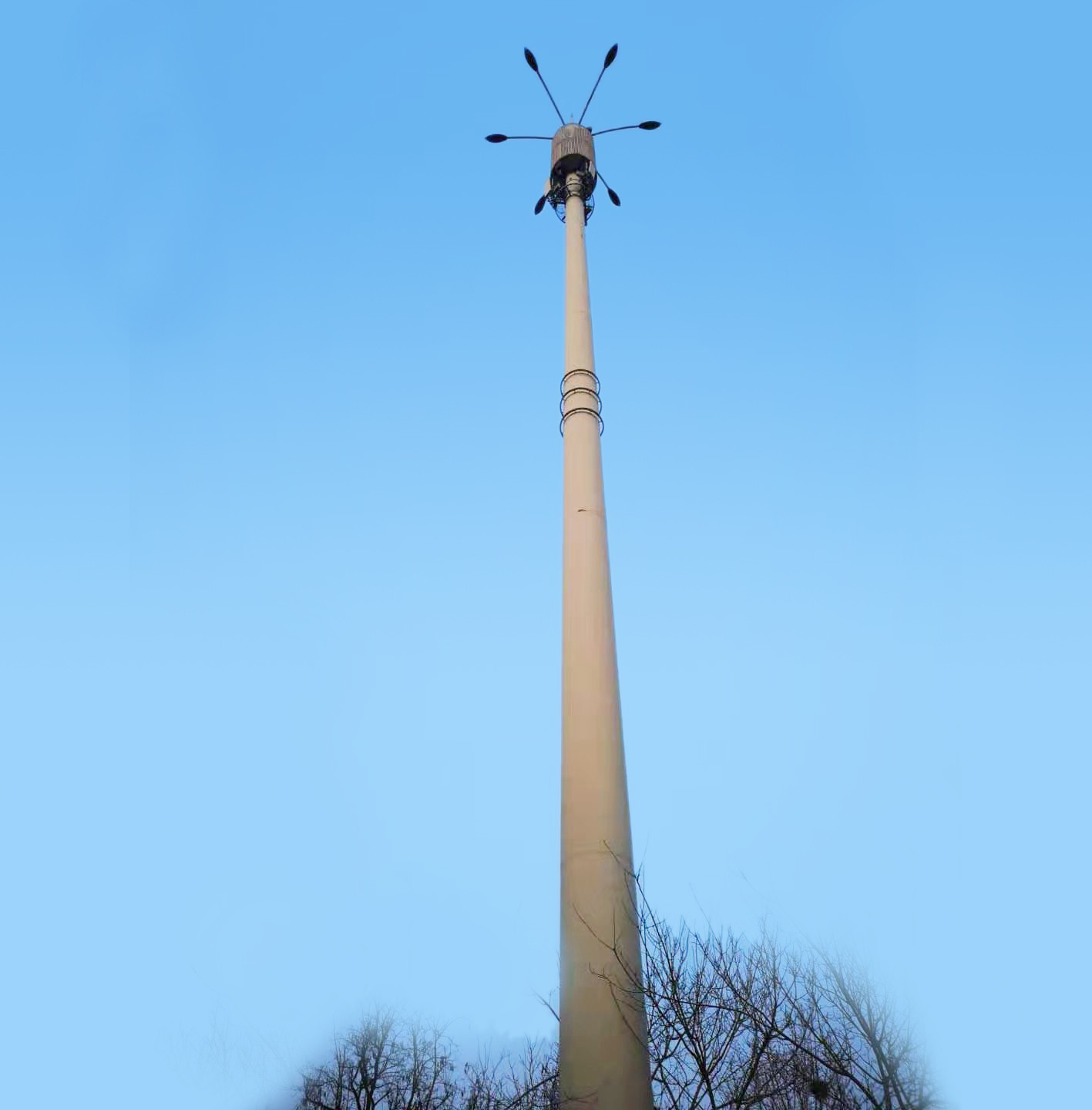

45M Steel Microwave Communication Telecommunic Tower For Mobile Transmission Line
Monopole Steel tower (communication monopole steel tower) is a practical and novel tower, which is adopted by the majority of construction units for its beautiful appearance, small floor area and high cost performance. The communication steel pole and tower produced by Hebei Chang Tong Co., Ltd. covers an area of 9-18 square meters. The tower body adopts reasonable sections and is connected with high-strength bolts through connectors, so that the installation is convenient and fast, and can adapt to the installation of a variety of complex field sites.
| Products Name | 36M 4 Sections Slip Joint Galvanized Tubular Telecommunication Tower |
| Poles Height | 15-60M |
| Poles Design wind | 100KM/H or depending on clients requirements |
|
Calculation Report (Deflection Calculation) |
Steel Pole Structure Analysis report |
| Wind Pressure Calculation report | |
| Poles Applications | Telecommunication, wireless internet. |
| Application place | Park,Mountain etc |
| Pole Work Platform | The Work Platform Layers Quantity Depending on the antennas installations Quantity/Size/Weight |
| Telecommunication Equipment Bracket |
Equipment Bracket usually use 76mm(OD) Pipe,The bracket length depending on the Work platform Layers and spacing of the work Platform. |
| Telecommunication Equipment Equipped | RRU,Microwave-Dish,Radome,Antenna Etc |
| Telecommunication Equipment Equipped Method | Equipment Equipped Method by “U” Type anchor bolt to fixed on 76mm(OD)pipe bracket. |
| Shape | Conical, Polygonal, |
| Length of per section | Within 14m once forming without slip joint |
| Material | Q235, Q355, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 |
| Minimum yield strength | 355 Mpa |
| Minimum ultimate tensile strength | 490 Mpa |
| Max ultimate tensile strength | 620 Mpa |
| Surface Treatment | Hot Dip Galvanization in accordance with Chinese Standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 or BS EN ISO 1461 and different Color Powder Coated. |
| Connection Method | Slip joint by lower section insert into upper section |
| Flange connect to flange(outer flange/inner flange) |
| Welding |
Welding complies with AWS D1.1 standard. CO2 Welding or Submerged Arc Auto methods No fissures, scars, overlaps, layering or other defects |
| Welds Seam | longitudinal welding seam and transverse welding seam |
| Welds slags removing | Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing. |
| Mounting Method | Direct Burial/With Base Template and Anchor Bolts |
| Base plate | Base plate is square/round/polygonal with slotted holes for anchor bolts or according to clients’ requirement. |
| Life Expectancy | More than 25 years depending on various environmental factors |
