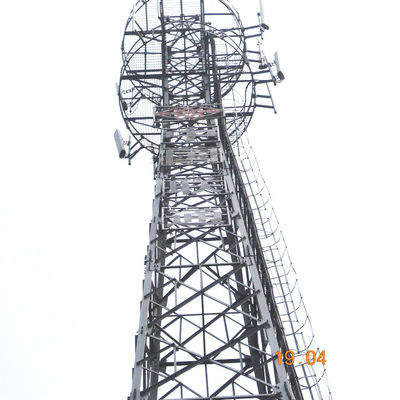

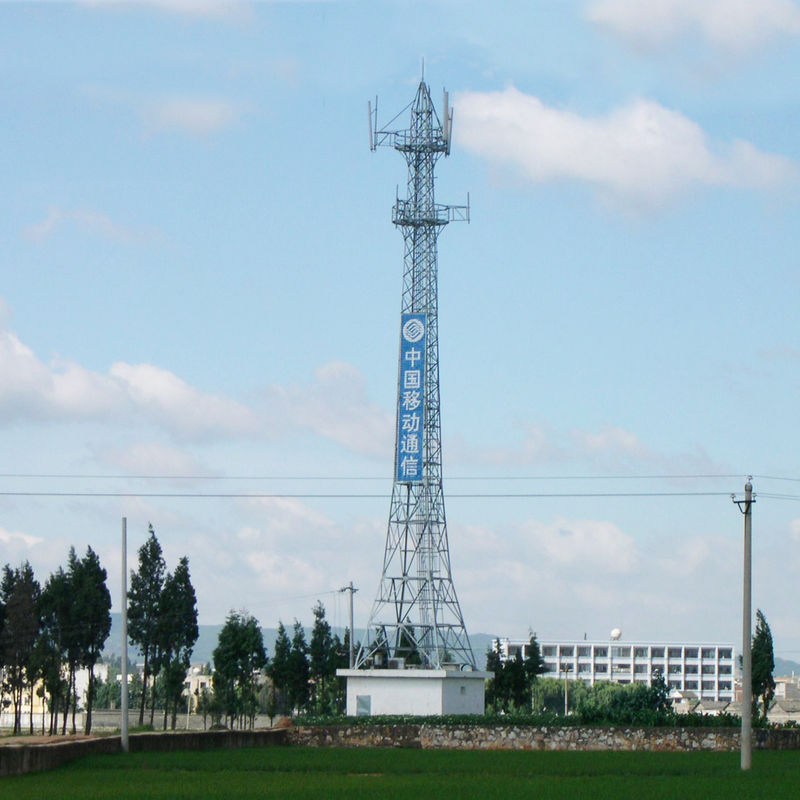

80m Q345B Steel Structure Tower For Communication

80m Q345B Steel Structure Tower For Communication

80m Q345B Steel Structure Tower For Communication
80m Q345B Steel Structure Tower For Communication
80m Q345B Steel Structure Tower For Communication
Product Details:
Place of Origin: China
Brand Name: ChangTong
Certification: ISO9001:2008
Model Number: JGT190409-4
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD1000-1500/Ton
Packaging Details: Container transport, according to customer requirements for reasonable packaging, the general situation of the tower for metal reinforcement bind.
Delivery Time: 30-45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000Ton/year
Contact Now
Detailed Product Description
Product Name: Angle Steel Tower Material: Q345/Q235
Surface Treatment: Hot-dip Galvanized Height: 15m-80m/Customized
Wind Speed: 30m/s Quantity Of Platform: 2/3/Customized
Antenna Type Of 4 Leg Angle Steel Tower: GSM, RRU,CDMA, MW Etc. Lifetime: More Than 30 Years
Application: Mobile Communication Tower Certification: ISO9001:2008
High Light:

80m Steel Structure Tower

,

80m Q345B Steel Structure Tower

,

80m Q345B Steel Tower For Communication

Product Description

1. Name: 3-legged or 4-legged communication angle steel tower with high quality and low price

2. Place of Origin: Jiangsu, China

3. Material: Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required.

4. Tower Type: Steel Tube, Angle Steel, Lattice Mast, Self-supporting

5. Tower Style: Three Legs Tower, Four Legs Tower

6. Height: Below 100 meter, customized.

7. Wind Pressure: 0.35-1 KN/m2

8. Connection: Flanges, Inserting, Connecting Plate & Bolt

9. Surface Treatment: Hot Dipped Galvanized

10. Zinc Coating: 65μ-85μ

11. Supply Capacity: 1500 MT/Month

12. Color: Galvanized, or customized

13. Usage: GSM, RRU, CDMA, Micro Wave, Radio etc.

14. Certification: ISO9001:2008, ISO14001:2004, OHSAS18001: 2007, SGS, MA
Technical Data

Design
1. Design Code TIA/EIA-222-G/F
Structure Steel
2. Grade Mild Steel High Tensile Steel
GB/T 700:Q235B, Q235C,Q235D GB/T1591:Q345B, Q345C,Q3455D
ASTM A36 ASTM A572 Gr50
EN10025: S235JR, S235J0,S235J2 EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa) 360~510 470~630
6. Yield strength (t≤16mm) (Mpa) 355 235
7. Elongation (%) 20 24
8. Impact strength KV (J) 27(20°C)---Q235B(S235JR) 27(20°C)---Q345B(S355JR)
27(0°C)---Q235C(S235J0) 27(0°C)---Q345C(S355J0)
27(-20°C)---Q235D(S235J2) 27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
Welding
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard AWS D1.1
Marking
14. Method of marking of the members Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153
Test
17. Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test
Capacity
18. Maximum Production Capacity 50,000 TON per annum
Product Show

80m Q345B Steel Structure Tower For Communication 0

Our Factory

80m Q345B Steel Structure Tower For Communication 180m Q345B Steel Structure Tower For Communication 2

Production Process

80m Q345B Steel Structure Tower For Communication 380m Q345B Steel Structure Tower For Communication 4

Detection

80m Q345B Steel Structure Tower For Communication 5

Our Company

Hebei Chang Tong supply 4G Mobile single tube tower 4G communication angle steel tower 2019

Communication tower, the main structural form of four column angle steel structure, three column angle steel structure



[main function] it is mainly used for signal transmission.



[main purpose] it is used in China Mobile, China Unicom, China Telecom, China tower company and China Railway Communication Company.



[structure form] it is mainly angle steel structure.



[structure content] Q235B steel or Q345B steel or 20 ﹥ steel is generally used, all of which are hot-dip galvanized for anti-corrosion treatment, and the connecting bolts are grade 6.8. Lightning rod is set on the top of the tower, and the lightning protection grounding resistance is less than or equal to 10 ohm.



[technical parameters] wind speed resistance: 30m / s, ice coating resistance: 8mm, seismic intensity: 8 degrees, working temperature: 35-55 ℃, verticality: 1 / 1000.



[height dimension] 10m-50m.



[product features] round steel or angle steel is used as the tower material, with small wind load coefficient and strong wind resistance. The tower column is connected by outer flange or iron clad angle steel, and the bolt is tensioned, so it is not easy to damage, and the maintenance cost is reduced.



[service life] 30-50 years



[warranty period] 1-3 years
