| Product Name: | Angle Steel Tower | Material: | Q345/Q235 |
|---|---|---|---|
| Surface Treatment: | Hot-dip Galvanized | Height: | 15m-80m/Customized |
| Wind Speed: | 30m/s | Quantity Of Platform: | 2/3/Customized |
| Antenna Type Of 4 Leg Angle Steel Tower: | GSM, RRU,CDMA, MW Etc. | Lifetime: | More Than 30 Years |
| Application: | Mobile Communication Tower | Certification: | ISO9001:2008 |
| High Light: | 50M/S Guyed Wire Tower,Angle steel Guyed Wire Tower,RRU Antenna steel Tower |
||

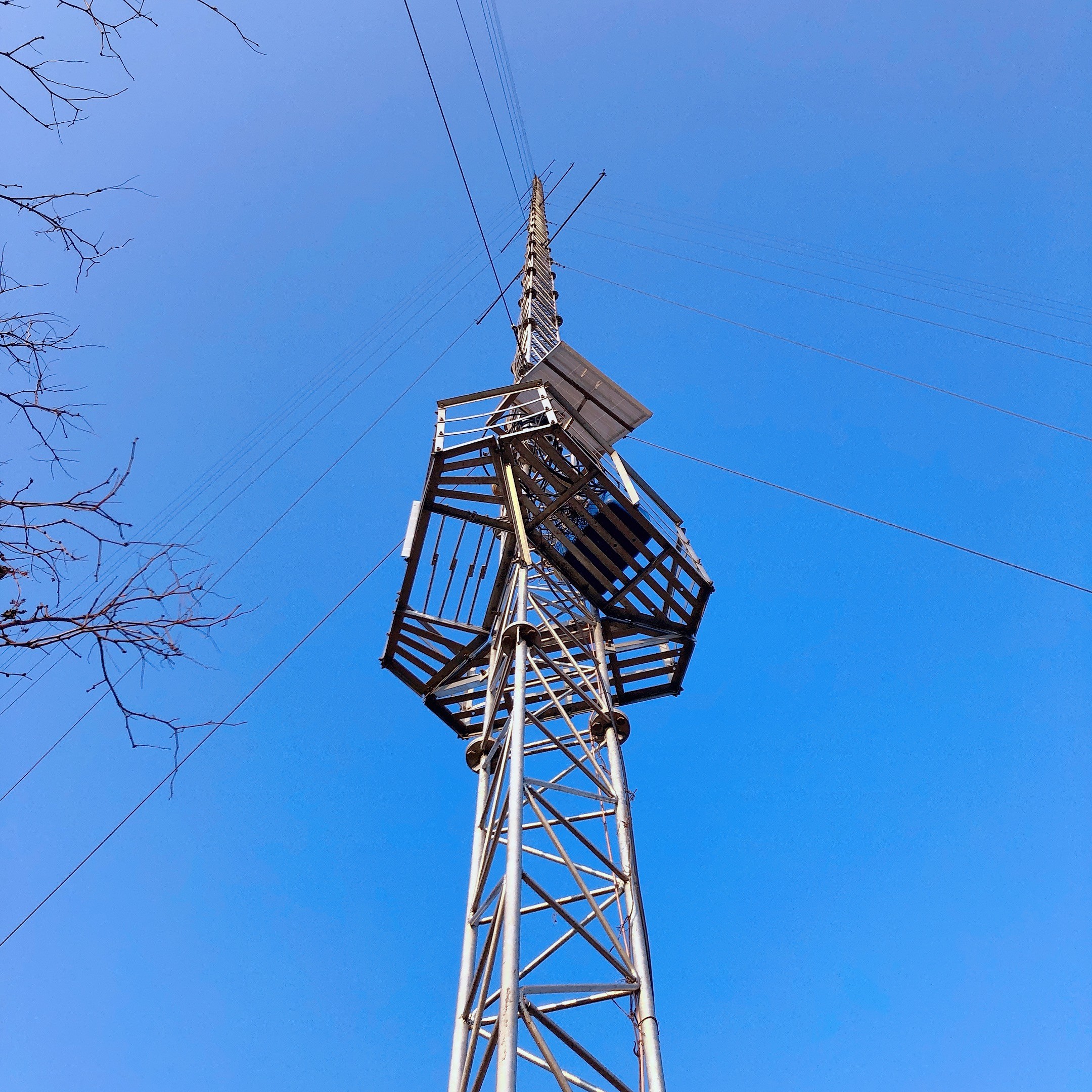

Galvanized Steel Lattice Guyed Telecom Radar Tower for telecommunication antenna
Details
Main Material:steel bar
Design Wind Speed:50M/S
Earthquake Intensity: 8°
Ice Coating:5mm-10mm(different in different regions)
Vertical Deviation:1/1000
Optimal Temperature:-45oC -+45oC
Preservative Treatment: hot-dipped galvanized
Work Life: more than 30years
Material Origin: Baosteel/Shousteel/Hansteel/Tangsteel
Wide Range of Applications
It can be installed in a load-bearing capacity of the roof, ground or slopes.
Advantage
The arrangement of equilateral triangle form and fixation of guyed strand,greatly reduce the weight of the tower; small wind load factor, simple foundation forms, small footprint (typically 0.25m × 0.25m), little damage for the load-bearing object, convenient construction of floor base, can be designed to multi-platform, high carrying capacity, can be mounted multiple antennas and microwave transmission equipment; when constructing in floor, the guyed fixation are made easily for many maintenances of the structures around the floor, greatly accelerate the speed of construction;when constructing in hillside,make the guyed fixation taking advantage of hillside, convenient to install, rapid construction progress, light component, small footprint, little damage for the load-bearing object.
1. Products
Triangular telecom tower
2. Standard
Bespoke Telecom tower could be fabricated as per GB, EN or ASTM standard with high quality.
3. Technical Data
| Design | ||||
| 1. Design Code | ANSI/TIA-222-G/F | |||
| 2. Design Wind Speed | Up to 250 km/h | |||
| 3. Allowable deflection | 0.5 degree @ operational speed | |||
| Structure Steel | ||||
| High Tensile Steel | Mild Steel | |||
| 4. Grade | GB1591: Q345B, Q345C,Q3455D | GB700: Q235B, Q235C,Q235D | ||
| EN10025: S355JR, S355J0, S355J2 | EN10025: S235JR, S235J0, S235J2 | |||
| ASTM A572 Gr50 | ASTM A36 | |||
| 5. Tension strength (Mpa) | 470~630 Mpa | 360~510 Mpa | ||
| 6. Yield strength (t≤16mm) (Mpa) | 355 Mpa | 235 Mpa | ||
| 7. Elongation (%) | 20 | 24 | ||
| 8. Sharpy V-notch Test | 27J(20°C) | Q345B/S355JR | 27(20°C) | Q235B/S235JR |
| 27(0°C) | Q345C/S355J0/A572 Gr50 | 27(0°C) | Q235C/S235J0/A36 | |
| 27(-20°C) | Q345D/S355J2 | 27(-20°C) | Q235D/S235J2 | |
| Bolts & Nuts | ||||
| 9. Grade | Grade 4.8, 6.8, 8.8 | |||
| 10. Standards for mechanical properties | ||||
| 10.1 Bolts | ISO 898-1 | |||
| 10.2 Nuts | ISO 898-2 | |||
| 10.3 Washers | ISO 6507-1 | |||
| 11. Standards for Dimensions | ||||
| 11.1 Bolts | DIN7990, DIN931, DIN933 | |||
| 11.2 Nuts | ISO4032, ISO4034 | |||
| 11.3 Washers | DIN7989, DIN127B, ISO7091 | |||
| Marking | ||||
| 12. Method of marking of the members | Hydraulic Press Stamping | |||
| Welding | ||||
| 13. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |||
| 14. Standard | AWS D1.1 | |||
| Galvanizing | ||||
| 15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |||
| 16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |||
| Capacity | ||||
| 17. Maximum Production Capacity of Steel Tower per annum | 100,000 TON per annum | |||
| 18. Maximum Capacity of Galvanizing Plant per annum | 100,000 TON per annum | |||
| Test | ||||
| 19. Factory test | Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test, Hammer test | |||
4. Quality control
100% inspection: Each member will be checked by our QC team to ensure all members are qualified before delivery.
5. Package
Set-wisely packing or member-wisely packing as per client's requirements.
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.
6. Experiences
Our products have been exported to more than 40 countries, such as Finland, Macedonia, Colombia, Venezuela, Chile, Cuba, Myanmar, South Korea, Kazakhstan, Pakistan, Philippines, India, Indonesia, Ethiopia, Sudan, Rwanda, Ghana, Benin, Nigeria, South Africa, UAE and Bahrain etc.
7. Our Commitment and target
Four ZEROs---Zero Quality Defect, Zero Quantity Shortage, Zero Delivery Delay, Zero Client Complaint
