Hebei Changtong Steel Structure Co., Ltd.
20 years of communication tower design and production experience
Provide comprehensive professional consulting services
Has served countless communication carriers
|Place of Origin:||China|
|Minimum Order Quantity:||1piece|
|Packaging Details:||Container transport, according to customer requirements for reasonable packaging, the general situation of the tower for metal reinforcement bind.|
|Payment Terms:||L/C, T/T, Western Union|
|Product Name:||Angle Steel Tower||Material:||Angle SteelQ345/Q235|
|Surface Treatment:||Hot-dip Galvanized||Height:||15m-80m/Customized|
|Wind Speed:||30m/s||Quantity Of Platform:||2/3/Customized|
|Antenna Type Of 4 Leg Angle Steel Tower:||GSM, RRU,CDMA, MW Etc.||Lifetime:||More Than 30 Years|
|Application:||Mobile Communication Tower|
Angle Steel 4 Legged Tower,
Radio Television 4 Legged Tower,
Television Steel 4 Legged Tower

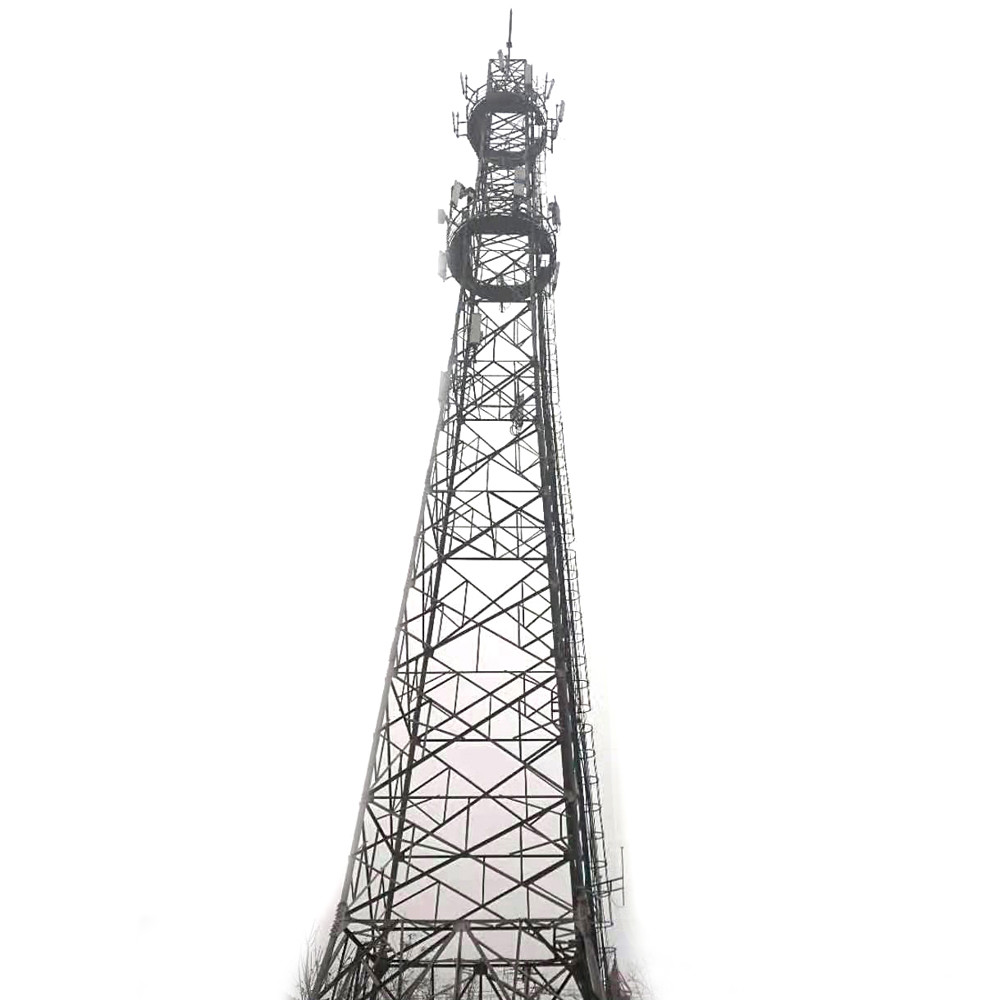

High-Quality Galvanized 4 Legs Telecom Angle Steel Tower
Radio and television tower is called radio and television tower for short, which is mainly used to place radio and television antenna. Most of them are built on the top or side of the city and town radio and television buildings.
Therefore, the structure of the tower not only meets the technological requirements of the radio and television antenna, but also needs beautiful shape and coordination with the surrounding environment.
The elevation profile of radio and television tower usually adopts multi fold line, which is not only beautiful, but also can make the foundation stress small and the whole tower stability good. The shape of plane section includes triangle, quadrilateral, hexagon and so on. In special cases, polygonal mesh structure can be used. The web members of radio and television tower are of monoclinic, crisscross, rhombic, K-type and subdivided shapes. Monoclinic web members are used in small radio and television towers. Generally, it is a rigid inclined bar. The diagonal member can be made into rigid and flexible. Flexibility can be divided into prestressed and non prestressed.
The radio and television tower is equipped with a platform for process, Liaowang and other purposes. Its level, number and layout height should be determined according to the use requirements. In general, the I-steel is used to connect the members of the platform and the U-steel is used to connect the members of the platform.
|1. Design Code||AST-101|
|2. Grade||Mild Steel||High Tensile Steel|
|ASTM A36||ASTM A572 Gr50|
|EN10025: S235JR||EN10025: S355JR|
|3. Design Wind Speed||0-300KM/H|
|4. Allowable deflection||0.5 ~1.0 degree at operational speed|
|5. Tension strength (Mpa)||360~510||470~630|
|6. Yield strength (t≤16mm) (Mpa)||355||235|
|7. Elongation (%)||20||24|
|Bolts & Nuts|
|8. Grade||Grade 4.8, 6.8, 8.8|
|10. Standards for mechanical properties|
|10.1 Bolts||ISO 898-1|
|10.2 Nuts||ISO 898-2|
|10.3 Washers||ISO 6507-1|
|12. Standard||AWS D1.1|
|14. Galvanization standard of steel sections||ISO 1461 or ASTM A123|
|15. Galvanization standard of bolts and nuts||ISO 1461 or ASTM A153|
Hebei Chang Tong Steel Structure Co., Ltd..
located in the hometown of China Tower, is a modern big-scale
professional company fabricating triangular communicationtower,four-corner communication tower, cable tower, single-tube tower,
camouflage communication tower and transmission linetower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.Company always adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and technology", continuously carry out technical transformation,
complete production equipment, reliable production process,adopt advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The equipment has a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the processing quality and provides a strong guarantee for
production, which can fully meet the design and production requirements of various types of towers and substation
Our steel tower products have won good reputation from our customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and Ireland.
Price Term: EXW, FOB, CFR or CIF and so on
Shipping port: Tianjin port
Payment Term: Usually 50% by T/T as deposit balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
Delivery Time: Usually 30-45 days after PO/drawing/prepayment confirmed.
Package: Normally we use steel wire to make the angle into bundle ,then use special material to protect the zinc, or according to client’s requirement.
Please provide drawings if you have so that we can calculate the accurate price for you.
We also provide design according to your requests, if you don't have drawings.
