Hebei Changtong Steel Structure Co., Ltd.
20 years of communication tower design and production experience
Provide comprehensive professional consulting services
Has served countless communication carriers
|Place of Origin:||China|
|Minimum Order Quantity:||1piece|
|Packaging Details:||Container transpor, the general situation of the tower for metal reinforcement bind.|
|Payment Terms:||L/C, T/T, Western Union|
|Product Name:||Mobile Cell Tower||Material:||SteelQ345/Q235/ASTM A36 A572 Gr50|
|Appearance Treatment:||Hot-dip Galvanized/powder Coated/painting||Height Of Tower:||15m-80m/Customized|
|Connection Structure:||Flange Connection/bolts Connection||Maximum Design Wind Speed:||30m/s|
|Quantity Of Platform:||2/3/Customized||Antenna Type:||GSM, RRU,CDMA, MW Etc.|
|Lifetime:||More Than 30 Years|

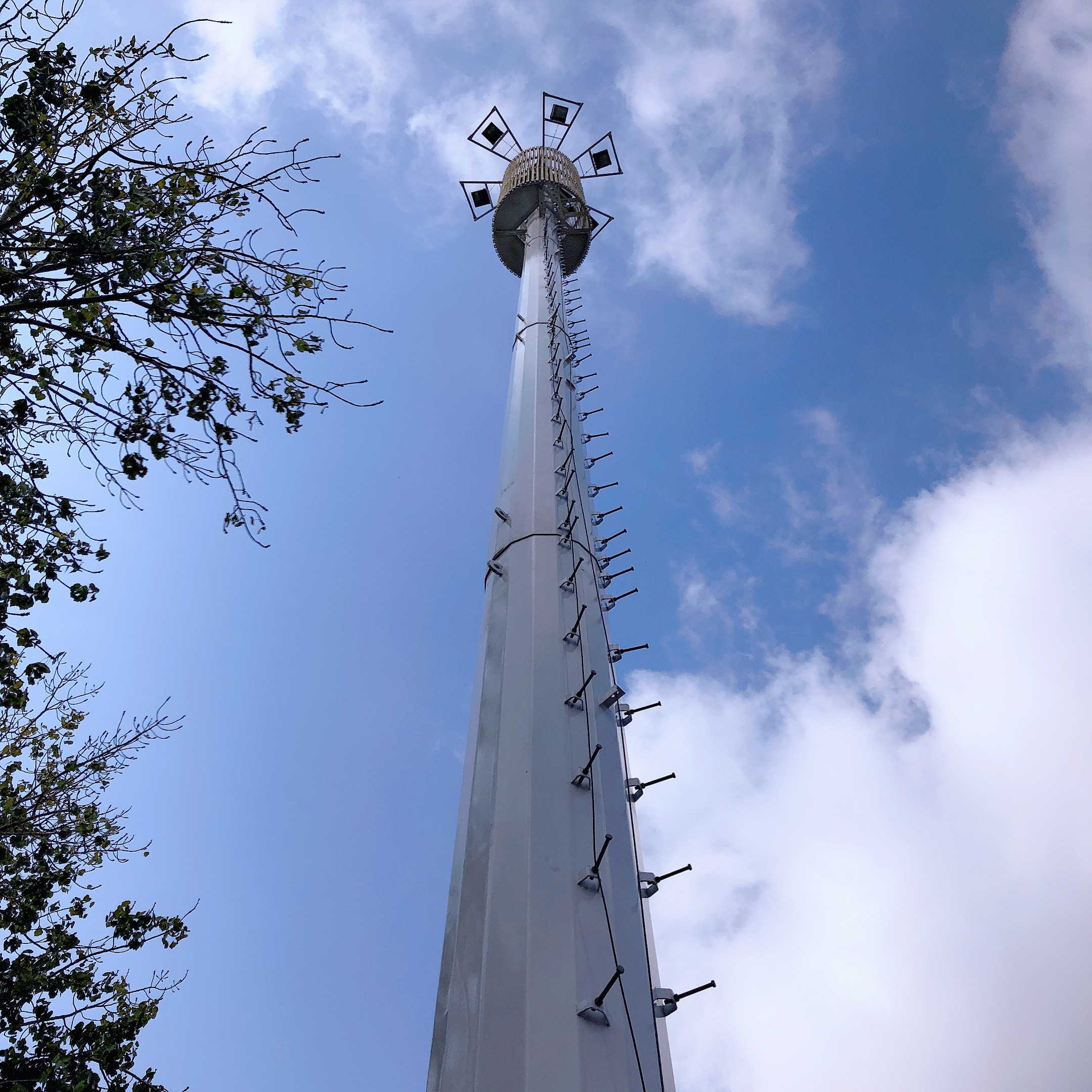

30 meter monopole steel tower,
40m monopole steel tower,
powder coated monopole steel tower
|Pole’s height||5m to 80m,or customized.|
Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²
Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²
Hot rolled coil from ASTM A572 GR65, GR50, SS400
Shape of pole
Round conical; Octagonal tapered; Straight square; Tubular stepped;
Shafts are made of steel sheet that folded into required shape
and welded longitudinally by automaticarc welding machine
Single or double brackets/ arm are in the shape and dimension
as per customers’ requirest.
|Length||Within 14m once forming without slip joint|
|Wall thickness||3mm to 20mm|
It has past flaw testing.Internal and external double welding makes the welding
beautiful in shape.And confirms with international welding standard of CWB,B/T13912-92 standard.
|Jointing||Jointing of pole with insert mode,inner flange mode,face to face joint mode.|
|Base plate mounted||
Base plate is square or round in shape with slotted holes
for anchor bolt and dimension as per customers requirement.
|Ground mounted||The length buried underground as per customers requirement.|
Hot dip galvanization with thickness of 80-100µm average in
accordance with Chinese standard GB/T 13912-2002 or American
standard ASTM A123, IS: 2626-1985.
Pure polyester powder painting, color is optional according to
RAL Color stardand.
|Wind Resistance||Aganist wind pressure of 160Km/h|
|Manufacturing||According to GB/T 1591-1994,GB/T3323—1989III;GB7000.1-7000.5-1996;GB-/T13912-92; ASTMD3359-83|
We control the quality according to the flow of ISO9001-2008.
Quality is controlled at every stage of production to ensure the product
compliance to the specifications/standards. Careful inspections are carried
out by highly trained inspection engineers as per the defined procedures
from raw material stage to finished product and delivery. Prototype assembly
of towers is carried out in the plant.
Hebei Chang Tong Steel Structure Co., Ltd..located in the hometown of China Tower, is a modern big-scale
professional company fabricating triangular communicationtower,four-corner communication tower, cable tower, single-tube tower,
camouflage communication tower and transmission linetower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.Company always adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and technology", continuously carry out technical transformation,
complete production equipment, reliable production process,adopt advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The equipment has a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the processing quality and provides a strong guarantee for
production, which can fully meet the design and production requirements of various types of towers and substation
Our steel tower products have won good reputation from our customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and Ireland.
