OEM Antenna 30m 30m/S Monopole Steel Tower

OEM Antenna 30m 30m/S Monopole Steel Tower

  • OEM Antenna 30m 30m/S Monopole Steel Tower
  • OEM Antenna 30m 30m/S Monopole Steel Tower
  • OEM Antenna 30m 30m/S Monopole Steel Tower
  • OEM Antenna 30m 30m/S Monopole Steel Tower
OEM Antenna 30m 30m/S Monopole Steel Tower
Product Details:
Place of Origin: China
Brand Name: ChangTong
Certification: ISO9001:2008
Model Number: JGT190409-2
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD1000-15000
Packaging Details: Container transpor, the general situation of the tower for metal reinforcement bind.
Delivery Time: 30-45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000Tons/year
Contact Now
Detailed Product Description
Product Name: Mobile Cell Tower Material: SteelQ345/Q235/ASTM A36 A572 Gr50
Appearance Treatment: Hot-dip Galvanized/powder Coated/painting Height Of Tower: 15m-80m/Customized
Connection Structure: Flange Connection/bolts Connection Maximum Design Wind Speed: 30m/s
Quantity Of Platform: 2/3/Customized Antenna Type: GSM, RRU,CDMA, MW Etc.
Lifetime: More Than 30 Years
High Light:

30m Monopole Steel Tower

,

OEM Monopole Steel Tower

,

30m/s Monopole Steel Tower

OEM Antenna 30m Self Supporting Mast Wifi Tower Telecom Price Supported Steel Cell 40m 30 Meter Monopole Tower

Product introduction
1. the common single pipe tower is single pipe type, with tower identity of 2-3 sections, and it is connected by plug-in or flange
2. the section of tower body is circular or polygonal, and the main pipe of tower body is overall tapered, and the lower part is large and small
3. antenna installation platform is set on the upper part of tower body, and climbing pin is set on tower body to facilitate operation of upper and lower tower
Product features
1. standard tower section design, can be flexibly configured and combined into towers of different heights
2. according to the requirements, customized design of installation equipment in the pipe tower is adopted
3. small floor area, small foundation construction, simple tower structure and short construction period

Products Name
  • monopole steel mobile communication tower
Height
  • 15-60m
Applications
  • Telecommunication, Broadcasting, etc
Shape
  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Material
  • Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
Surface Treatment
  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006
  • Can be powder coated or painted according to clients' request
Wall Thickness
  • 2~30mm
Once Forming
  • 16m Once forming without joint
Welding
  • Welding complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding makes the pole more beautiful in shape
  • If customers need any other requirements of welding, we also can make adjustment ad your request
Joint
  • Joint with insert mode, flange mode.

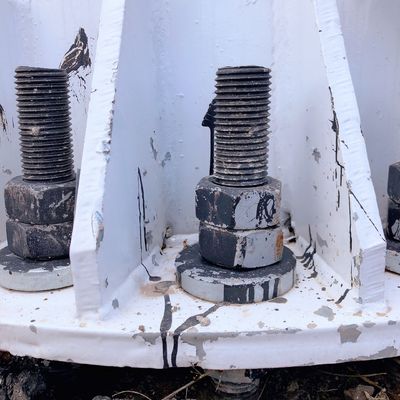

Base plate
  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.
Life Period
  • More than 25 years, it is according to installing environmnt





Product Show

OEM Antenna 30m 30m/S Monopole Steel Tower 0OEM Antenna 30m 30m/S Monopole Steel Tower 1



Our Company

Hebei Chang Tong Steel Structure Co., Ltd..located in the hometown of China Tower, is a modern big-scale
professional company fabricating triangular communicationtower,four-corner communication tower, cable tower, single-tube tower,
camouflage communication tower and transmission linetower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.Company always adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and technology", continuously carry out technical transformation,
complete production equipment, reliable production process,adopt advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The equipment has a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the processing quality and provides a strong guarantee for
production, which can fully meet the design and production requirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and Ireland.
