Signal Communication Lightning Protection GSM Monopole Steel Tower

Signal Communication Lightning Protection GSM Monopole Steel Tower

  • Signal Communication Lightning Protection GSM Monopole Steel Tower
  • Signal Communication Lightning Protection GSM Monopole Steel Tower
  • Signal Communication Lightning Protection GSM Monopole Steel Tower
  • Signal Communication Lightning Protection GSM Monopole Steel Tower
Signal Communication Lightning Protection GSM Monopole Steel Tower
Product Details:
Place of Origin: China
Brand Name: ChangTong
Certification: ISO9001:2008
Model Number: JGT190409-2
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD1000-15000
Packaging Details: Container transpor, the general situation of the tower for metal reinforcement bind.
Delivery Time: 30-45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000Tons/year
Contact Now
Detailed Product Description
Product Name: Mobile Cell Tower Material: SteelQ345/Q235/ASTM A36 A572 Gr50
Appearance Treatment: Hot-dip Galvanized/powder Coated/painting Height Of Tower: 15m-80m/Customized
Connection Structure: Flange Connection/bolts Connection Maximum Design Wind Speed: 30m/s
Quantity Of Platform: 2/3/Customized Antenna Type: GSM, RRU,CDMA, MW Etc.
Lifetime: More Than 30 Years
High Light:

lightning protection monopole steel tower

,

signal communication monopole steel tower

,

GSM monopole steel tower



Monopole Steel Tower Telecommunication Towers Signal Communication Lightning Protection



Hot Dip Galvanized High Quality Telecommunication Steel Monopole Tower

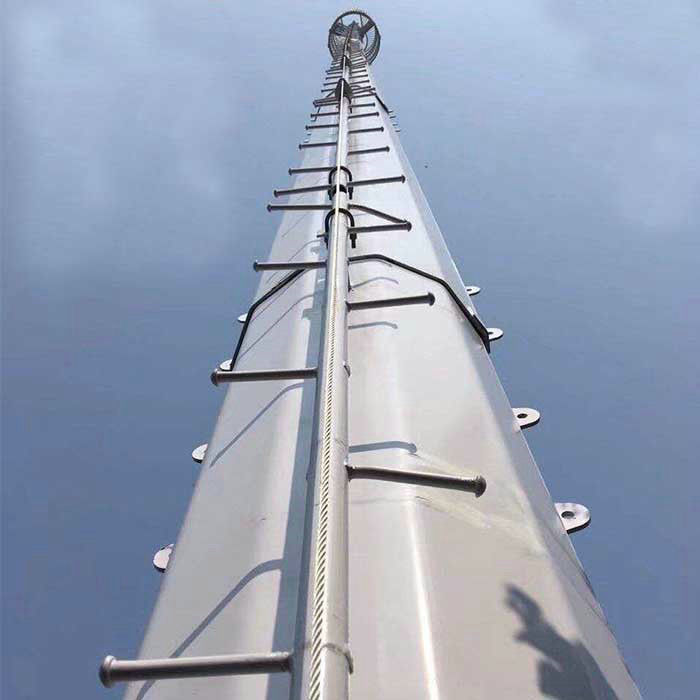

Monopole tube tower is a practical and novel tower, which is adopted by the majority of construction units for its beautiful appearance, small floor area and high cost performance.


The monopole tower body adopts reasonable sections and is connected with high-strength bolts through connectors, which makes the installation convenient and fast, and can adapt to the installation of a variety of complex field sites. The built-in ladder and wiring mode can not only provide convenient and safe operation environment for operators, but also prevent the feeder from being exposed to the sun and rain, greatly extending the service life of the feeder, and the tower body center of gravity is not large The tower bottom is fixed with double nuts. This structure can fine tune the verticality of the tower and ensure the installation accuracy more effectively





Quick Details

Place of Origin:

Hebei, China

Brand Name:CT

Model Number:

DGT190311-2

Product name:

Hot galvanized telecom monopole tower

Material:

SteelQ345/Q235

Appearance Treatment:

Hot-dip galvanized/powder coated/painting

Height of Tower:

15m-80m/Customized

Connection structure:

flange connection/bolts connection

Maximum Design Wind Speed:

32m/s

Quantity of Platform:

2/3/Customized

Antenna Type:

GSM, RRU,CDMA, MW etc.

Lifetime:

More than 30 Years

design software:

MS TOWER

Supply Ability

Supply Ability:

20000 Ton/Tons per Year

Packaging & Delivery

Packaging Details

Container transpor, the general situation of the tower for metal reinforcement bind.

Port

TianJin Port

Lead Time :

Quantity(Tons)

1 - 10

>10

Est. Time(days)

20

To be negotiated



Monopole tower




Pole’s height

5m to 80m,or customized.

Material

Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

Hot rolled coil from ASTM A572 GR65, GR50, SS400



Shape of pole

Round conical; Octagonal tapered; Straight square; Tubular stepped;

Shafts are made of steel sheet that folded into required shape

and welded longitudinally by automaticarc welding machine

Brackets/ Arm

Single or double brackets/ arm are in the shape and dimension

as per customers’ requirest.

Length

Within 14m once forming without slip joint

Wall thickness

3mm to 20mm

Welding

It has past flaw testing.Internal and external double welding makes the welding

beautiful in shape.And confirms with international welding standard of CWB,B/T13912-92 standard.

Jointing

Jointing of pole with insert mode,inner flange mode,face to face joint mode.

Base plate mounted

Base plate is square or round in shape with slotted holes

for anchor bolt and dimension as per customers requirement.

Ground mounted

The length buried underground as per customers requirement.

Galvanizing

Hot dip galvanization with thickness of 80-100µm average in

accordance with Chinese standard GB/T 13912-2002 or American

standard ASTM A123, IS: 2626-1985.

Powder coating

Pure polyester powder painting, color is optional according to

RAL Color stardand.

Wind Resistance

Aganist wind pressure of 160Km/h

Manufacturing

According to GB/T 1591-1994,GB/T3323—1989III;GB7000.1-7000.5-1996;GB-/T13912-92; ASTMD3359-83

Quality Control

We control the quality according to the flow of ISO9001-2008.

Quality is controlled at every stage of production to ensure the product

compliance to the specifications/standards. Careful inspections are carried

out by highly trained inspection engineers as per the defined procedures

from raw material stage to finished product and delivery. Prototype assembly

of towers is carried out in the plant.







Product Show

Signal Communication Lightning Protection GSM Monopole Steel Tower 0Signal Communication Lightning Protection GSM Monopole Steel Tower 1



Our Company

Hebei Chang Tong Steel Structure Co., Ltd..located in the hometown of China Tower, is a modern big-scale
professional company fabricating triangular communicationtower,four-corner communication tower, cable tower, single-tube tower,
camouflage communication tower and transmission linetower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.Company always adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and technology", continuously carry out technical transformation,
complete production equipment, reliable production process,adopt advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The equipment has a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the processing quality and provides a strong guarantee for
production, which can fully meet the design and production requirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and Ireland.

Production Process

Signal Communication Lightning Protection GSM Monopole Steel Tower 2Signal Communication Lightning Protection GSM Monopole Steel Tower 3

Detection

Signal Communication Lightning Protection GSM Monopole Steel Tower 4

Cooperative units

Signal Communication Lightning Protection GSM Monopole Steel Tower 5
