|Place of Origin:||China|
|Minimum Order Quantity:||1piece|
|Packaging Details:||Container transport, according to customer requirements for reasonable packaging, the general situation of the tower for metal reinforcement bind.|
|Payment Terms:||L/C, T/T, Western Union|
|Product Name:||100m Microwave Radio And Television Tower||Material:||Q345/Q235|
|Surface Treatment:||Hot-dip Galvanized||Height:||15m-80m/Customized|
|Wind Speed:||30m/s||Quantity Of Platform:||2/3/Customized|
|Antenna Type Of 4 Leg Angle Steel Tower:||GSM, RRU,CDMA, MW Etc.||Lifetime:||More Than 30 Years|
100m radio and television tower,
galvanised radio and television tower,
30m/s radio and television tower

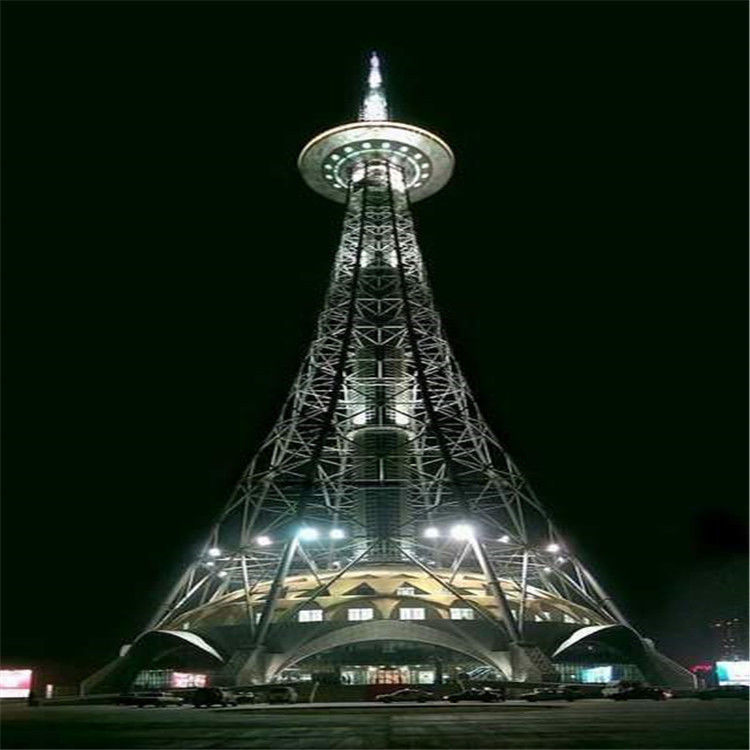

30m/S 100m Microwave Galvanised Radio And Television Tower
TV Tower, namely radio and TV transmission tower, its height is generally more than 70 meters. In order to reduce the influence of wind resistance, steel pipe structure is mostly used. Steel pipe material is basically used for TV transmission tower above 100 meters. Now, in addition to signal transmission, the TV tower has more functions of sightseeing. Some of them have installed rotating facilities on the sightseeing platform, realizing the diversification of functions, becoming a local landmark building and forming a local unique landscape. Because of the use of new composite materials and new technology, the whole tower is novel, beautiful and textured, which not only plays the role of communication, but also plays the role of decoration.
The radio and television transmission tower is mostly made of steel pipe material supplemented by steel plate. The components of the tower are connected by bolts, and all the components of the tower are hot-dip galvanized after processing. The angle steel tower is composed of tower shoe, tower body, lightning tower, lightning rod, platform, ladder, antenna support, feeder frame and lightning down lead.
|Material Standard||GB/T700-2006 / GB/T1591-2018|
|ASTM A36/A36M-19 / ASTM A572/A572M-18|
|BS EN ISO1461:2009|
|Bolts & Nuts Standard||GB/T3098.1-2010 / GB/T3098.2-2015|
|ISO898-1:2013 / ISO898-2:2012|
|Washers Standard||GB/T95-2002 / GB/T94.1-2008|
|DIN126 / DIN127B|
Hebei Chang Tong supply 4G Mobile single tube tower 4G communication angle steel tower 2019
Communication tower, the main structural form of four column angle steel structure, three column angle steel structure
[main function] it is mainly used for signal transmission.
[main purpose] it is used in China Mobile, China Unicom, China Telecom, China tower company and China Railway Communication Company.
[structure form] it is mainly angle steel structure.
[structure content] Q235B steel or Q345B steel or 20 ﹥ steel is generally used, all of which are hot-dip galvanized for anti-corrosion treatment, and the connecting bolts are grade 6.8. Lightning rod is set on the top of the tower, and the lightning protection grounding resistance is less than or equal to 10 ohm.
[technical parameters] wind speed resistance: 30m / s, ice coating resistance: 8mm, seismic intensity: 8 degrees, working temperature: 35-55 ℃, verticality: 1 / 1000.
[height dimension] 10m-50m.
[product features] round steel or angle steel is used as the tower material, with small wind load coefficient and strong wind resistance. The tower column is connected by outer flange or iron clad angle steel, and the bolt is tensioned, so it is not easy to damage, and the maintenance cost is reduced.
[service life] 30-50 years
[warranty period] 1-3 years
