Hebei Changtong Steel Structure Co., Ltd.
20 years of communication tower design and production experience
Provide comprehensive professional consulting services
Has served countless communication carriers
 |
| Place of Origin: | China |
| Brand Name: | ChangTong |
| Certification: | ISO9001:2008 |
| Model Number: | JGT190409-4 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD1000-1500/Ton |
| Packaging Details: | Container transport, according to customer requirements for reasonable packaging, the general situation of the tower for metal reinforcement bind. |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000Ton/year |

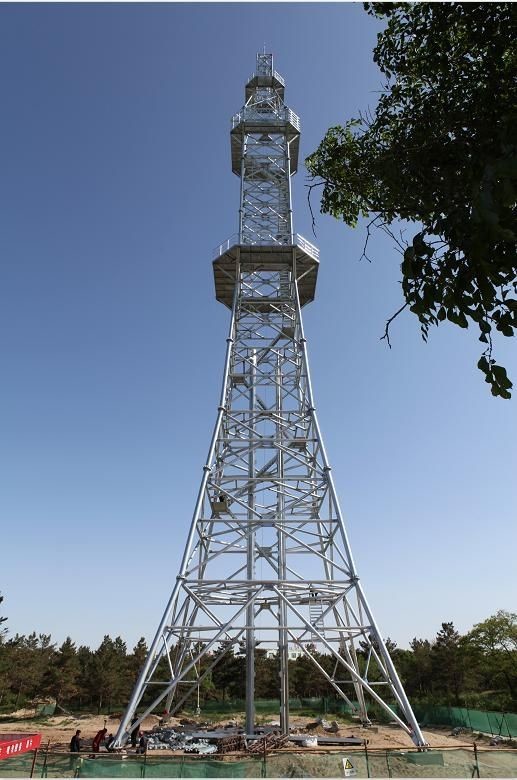

| Product Name: | Iso Certificated Galvanized Q345 Tv Antenna Tower | Material: | Q345/Q235 |
|---|---|---|---|
| Surface Treatment: | Hot-dip Galvanized | Height: | 15m-80m/Customized |
| Wind Speed: | 30m/s | Quantity Of Platform: | 2/3/Customized |
| Antenna Type Of 4 Leg Angle Steel Tower: | GSM, RRU,CDMA, MW Etc. | Lifetime: | More Than 30 Years |
| Application: | TV Tower | Certification: | ISO9001:2008 |
| High Light: | tv self supporting antenna tower,iso certificated self supporting antenna tower,galvanized self supporting antenna tower |
||
TV Tower series
TV transmission tower is a space truss steel structure used for radio and TV transmission. In order to expand the scope of broadcasting, the TV transmitting antenna must be high. In this way, the TV Tower will be built higher and higher, and finally become the tallest building in modern times. It is necessary to spread the TV to every household. The TV Tower is generally located in the urban area. It often becomes the tallest building in the city, and also the tallest point in the city, It has become a scenic spot in the city. Nowadays, TV towers not only broadcast TV, but also can visit. Some TV towers are equipped with revolving restaurants, which have been combined with tourism and become a kind of multi-purpose tower.
| Brand | HM |
| Voltage | 11-1100kV |
| Tower Type | Self-supporting |
| Material Standard | GB/T700-2006 / GB/T1591-2018 |
| ASTM A36/A36M-19 / ASTM A572/A572M-18 | |
| EN10025-2:2019 | |
| Fabrication Standard | GB/T2694-2018 |
| Galvanization Standard | GB/T13912-2002 |
| ASTM A123/A123M-17 | |
| BS EN ISO1461:2009 | |
| Bolts & Nuts Standard | GB/T3098.1-2010 / GB/T3098.2-2015 |
| DIN7990 | |
| ISO898-1:2013 / ISO898-2:2012 | |
| Washers Standard | GB/T95-2002 / GB/T94.1-2008 |
| DIN126 / DIN127B | |
| ISO7091-2000 |
Hebei Chang Tong supply 4G Mobile single tube tower 4G communication angle steel tower 2019
Communication tower, the main structural form of four column angle steel structure, three column angle steel structure
[main function] it is mainly used for signal transmission.
[main purpose] it is used in China Mobile, China Unicom, China Telecom, China tower company and China Railway Communication Company.
[structure form] it is mainly angle steel structure.
[structure content] Q235B steel or Q345B steel or 20 ﹥ steel is generally used, all of which are hot-dip galvanized for anti-corrosion treatment, and the connecting bolts are grade 6.8. Lightning rod is set on the top of the tower, and the lightning protection grounding resistance is less than or equal to 10 ohm.
[technical parameters] wind speed resistance: 30m / s, ice coating resistance: 8mm, seismic intensity: 8 degrees, working temperature: 35-55 ℃, verticality: 1 / 1000.
[height dimension] 10m-50m.
[product features] round steel or angle steel is used as the tower material, with small wind load coefficient and strong wind resistance. The tower column is connected by outer flange or iron clad angle steel, and the bolt is tensioned, so it is not easy to damage, and the maintenance cost is reduced.
[service life] 30-50 years
[warranty period] 1-3 years
