| Place of Origin: | China |
| Brand Name: | ChangTong |
| Certification: | ISO9001:2008 |
| Model Number: | JGT190409-4 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD1000-1500/Ton |
| Packaging Details: | Container transport, according to customer requirements for reasonable packaging, the general situation of the tower for metal reinforcement bind. |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000Ton/year |

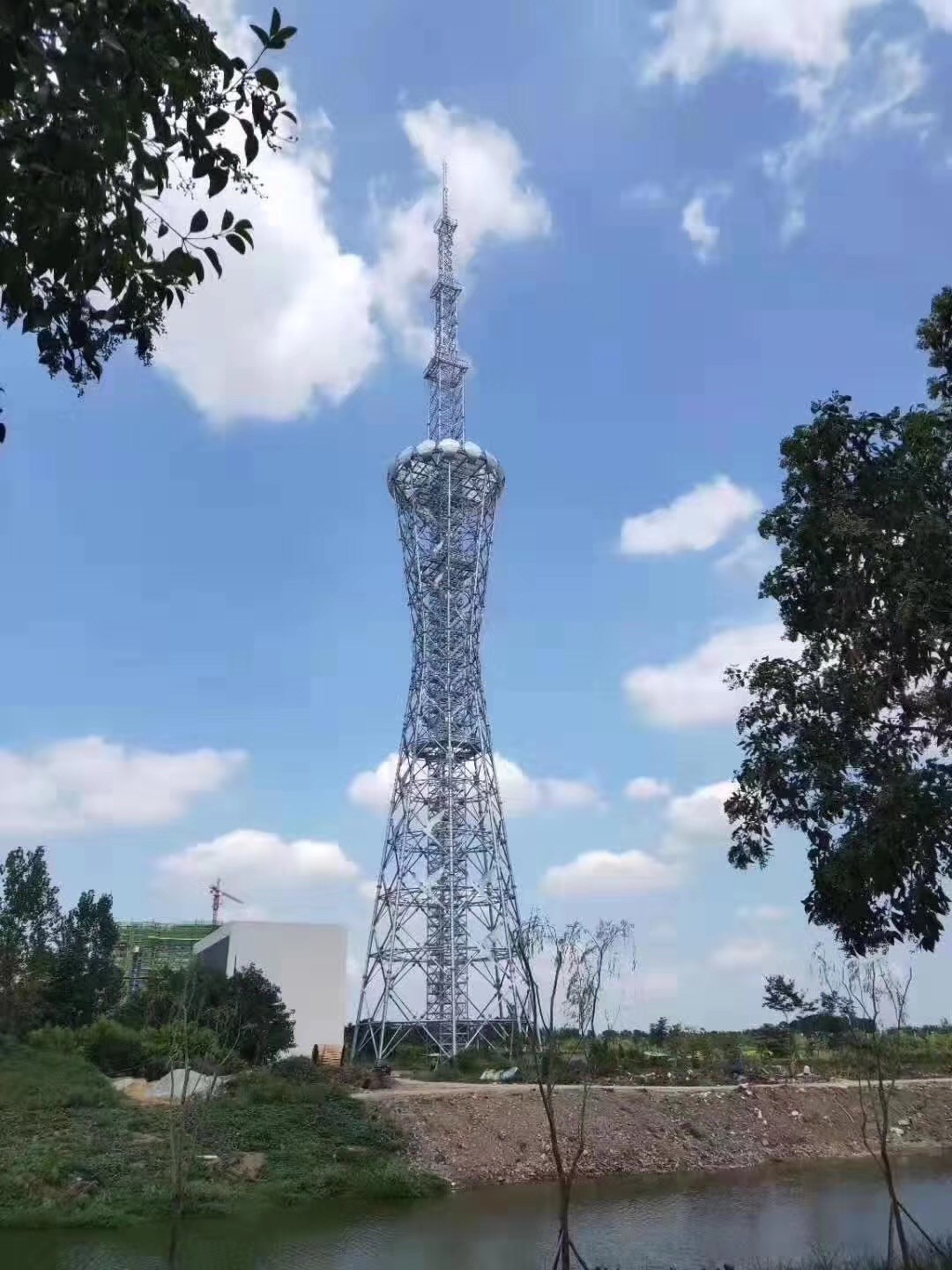

| Product Name: | Fashionable Steel Radio And Television Tower | Material: | Q345/Q235 |
|---|---|---|---|
| Surface Treatment: | Hot-dip Galvanized | Height: | 15m-80m/Customized |
| Wind Speed: | 30m/s | Quantity Of Platform: | 2/3/Customized |
| Antenna Type Of 4 Leg Angle Steel Tower: | GSM, RRU,CDMA, MW Etc. | Lifetime: | More Than 30 Years |
| Application: | TV Tower | Certification: | ISO9001:2008 |
| High Light: | 262ft radio and television tower,CDMA radio and television tower,cdma self supporting radio tower |
||
TV Tower series
The elevation shape of self-supporting steel tower is generally conical, with small upper section and large lower section. The lower part of the tower is usually a regular polygon, and the upper part is gradually transformed into several straight quadrilateral segments with different side widths in order to install the antenna. Its main material is round steel or steel pipe, and some secondary members use angle steel. The self-supporting steel tower has compact structure and beautiful appearance, and its components can be prefabricated in the factory in advance.
| Brand | HM |
| Voltage | 11-1100kV |
| Tower Type | Self-supporting |
| Material Standard | GB/T700-2006 / GB/T1591-2018 |
| ASTM A36/A36M-19 / ASTM A572/A572M-18 | |
| EN10025-2:2019 | |
| Fabrication Standard | GB/T2694-2018 |
| Galvanization Standard | GB/T13912-2002 |
| ASTM A123/A123M-17 | |
| BS EN ISO1461:2009 | |
| Bolts & Nuts Standard | GB/T3098.1-2010 / GB/T3098.2-2015 |
| DIN7990 | |
| ISO898-1:2013 / ISO898-2:2012 | |
| Washers Standard | GB/T95-2002 / GB/T94.1-2008 |
| DIN126 / DIN127B | |
| ISO7091-2000 |
Hebei Chang Tong supply 4G Mobile single tube tower 4G communication angle steel tower 2019
Communication tower, the main structural form of four column angle steel structure, three column angle steel structure
[main function] it is mainly used for signal transmission.
[main purpose] it is used in China Mobile, China Unicom, China Telecom, China tower company and China Railway Communication Company.
[structure form] it is mainly angle steel structure.
[structure content] Q235B steel or Q345B steel or 20 ﹥ steel is generally used, all of which are hot-dip galvanized for anti-corrosion treatment, and the connecting bolts are grade 6.8. Lightning rod is set on the top of the tower, and the lightning protection grounding resistance is less than or equal to 10 ohm.
[technical parameters] wind speed resistance: 30m / s, ice coating resistance: 8mm, seismic intensity: 8 degrees, working temperature: 35-55 ℃, verticality: 1 / 1000.
[height dimension] 10m-50m.
[product features] round steel or angle steel is used as the tower material, with small wind load coefficient and strong wind resistance. The tower column is connected by outer flange or iron clad angle steel, and the bolt is tensioned, so it is not easy to damage, and the maintenance cost is reduced.
[service life] 30-50 years
[warranty period] 1-3 years
