Hebei Changtong Steel Structure Co., Ltd.
20 years of communication tower design and production experience
Provide comprehensive professional consulting services
Has served countless communication carriers
 |
| Place of Origin: | China |
| Brand Name: | ChangTong |
| Certification: | ISO9001:2008 |
| Model Number: | JGT190409-4 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD1000-1500/Ton |
| Packaging Details: | Container transport, according to customer requirements for reasonable packaging, the general situation of the tower for metal reinforcement bind. |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000Ton/year |
| Product Name: | Tubular Angular Radio And Television Tower Self Supporting | Material: | Q345/Q235 |
|---|---|---|---|
| Surface Treatment: | Hot-dip Galvanized | Height: | 15m-80m/Customized |
| Wind Speed: | 30m/s | Quantity Of Platform: | 2/3/Customized |
| Antenna Type Of 4 Leg Angle Steel Tower: | GSM, RRU,CDMA, MW Etc. | Lifetime: | More Than 30 Years |
| Application: | TV Tower | Certification: | ISO9001:2008 |
| High Light: | 15 metres radio and television tower,angular radio and television tower,15 metres self supporting radio tower |
||

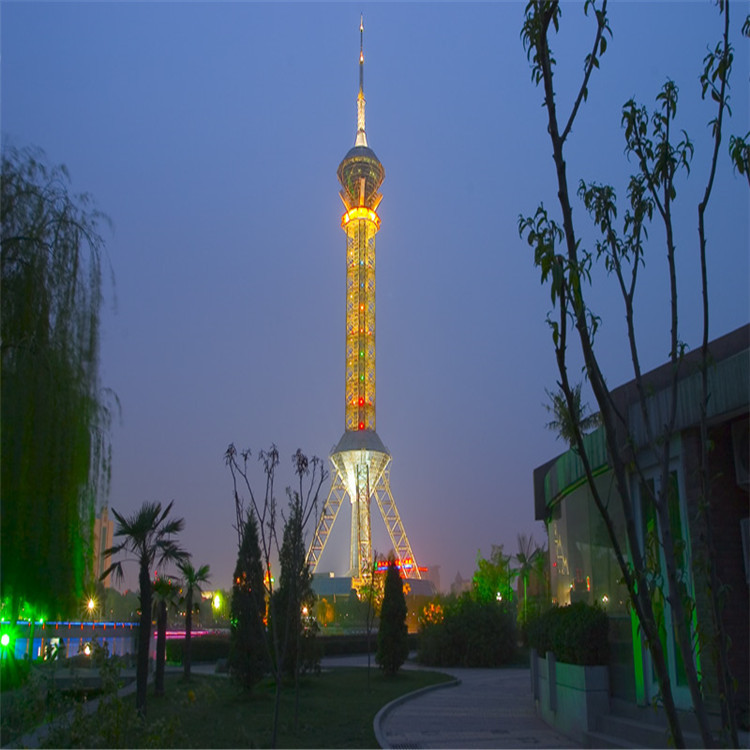

Radio and television tower is used for radio and television signal transmission support, in order to make a wide range of wireless signal transmission, television transmitting antenna must be high, so the height of the TV Tower is designed and produced according to the needs of customers; The types are divided into stay wire type and self-supporting type, and the cross-section shapes are triangle, quadruple, hexagon, octagon, etc; The tower can also be equipped with a platform for craft, lookout and other purposes for tourists to visit.
Hebei Chang Tong supply 4G Mobile single tube tower 4G communication angle steel tower 2019
Communication tower, the main structural form of four column angle steel structure, three column angle steel structure
[main function] it is mainly used for signal transmission.
[main purpose] it is used in China Mobile, China Unicom, China Telecom, China tower company and China Railway Communication Company.
[structure form] it is mainly angle steel structure.
[structure content] Q235B steel or Q345B steel or 20 ﹥ steel is generally used, all of which are hot-dip galvanized for anti-corrosion treatment, and the connecting bolts are grade 6.8. Lightning rod is set on the top of the tower, and the lightning protection grounding resistance is less than or equal to 10 ohm.
[technical parameters] wind speed resistance: 30m / s, ice coating resistance: 8mm, seismic intensity: 8 degrees, working temperature: 35-55 ℃, verticality: 1 / 1000.
[height dimension] 10m-50m.
[product features] round steel or angle steel is used as the tower material, with small wind load coefficient and strong wind resistance. The tower column is connected by outer flange or iron clad angle steel, and the bolt is tensioned, so it is not easy to damage, and the maintenance cost is reduced.
[service life] 30-50 years
[warranty period] 1-3 years
