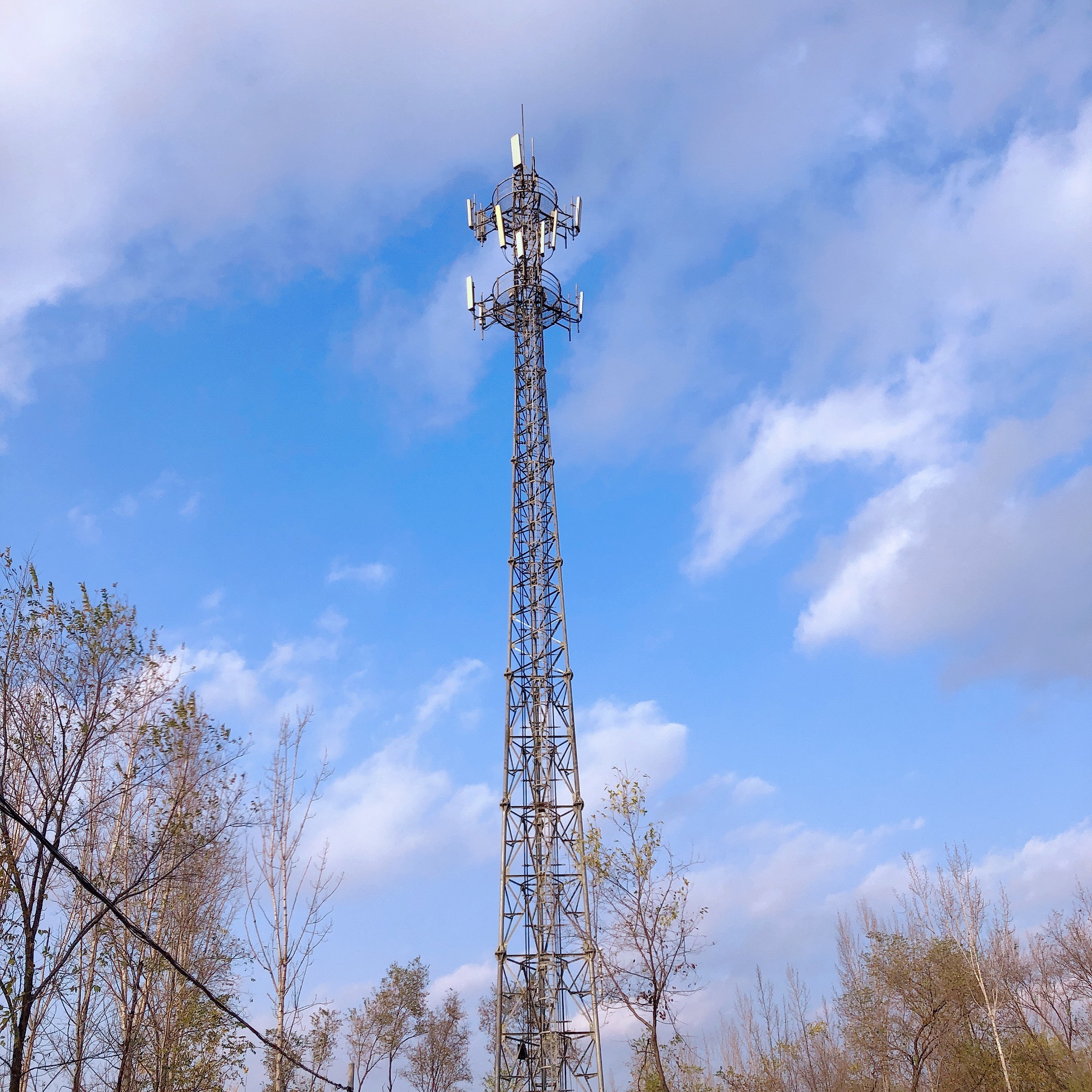

32m/S 10meter Galvanised Lattice Tower Wind Turbine

32m/S 10meter Galvanised Lattice Tower Wind Turbine

  • 32m/S 10meter Galvanised Lattice Tower Wind Turbine
32m/S 10meter Galvanised Lattice Tower Wind Turbine
Product Details:
Place of Origin: China
Brand Name: ChangTong
Certification: ISO9001:2008
Model Number: JGT190409-2
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD1000-15000
Packaging Details: sea worthy packaging or packed as customers' requirements
Delivery Time: 30-45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000Tons/year
Contact Now
Detailed Product Description
Material: Steel Q235B Q345B Appearance Treatment: Hot-dip Galvanized
Height Of Tower: 10m-50m/Customized Connection Structure: Bolts Connection
Design Wind Speed: 32m/s Structure Type: Self-standing / Pull Type
Lifetime: More Than 30 Years
High Light:

galvanised lattice tower wind turbine

,

32m/s lattice tower wind turbine

,

10meter lattice tower wind turbine



Lattice Steel Tower

Galvanised Steel Lattice Telecom Antenna Surveillance Camera Pull Rope Wind Tower Guyed Wire Mast Tower

1. Using seamless steel tube as tower material, the wind load coefficient is small and the wind resistance is strong.
2. The tower column is connected by outer flange, and the bolt is tensioned, which is not easy to be damaged and reduces the maintenance cost.
3. The tower column is arranged in triangle shape to save steel.
4. Small root opening, small floor area, saving land resources and convenient site selection.
5. The weight of the tower body is light, and the new type of trefoil cutting board foundation can reduce the foundation cost.
6. Truss structure design, convenient transportation and installation, short construction period.
7. The tower type is designed according to the wind load curve, with smooth lines. It is not easy to collapse in case of rare wind disaster, reducing casualties of people and animals.
8. The design conforms to the national steel structure design code and tower and mast design specification, and the structure is safe and reliable



Design
1. Design Code TIA/EIA-222-G/F
Structure Steel
2. Grade Mild Steel High Tensile Steel
GB/T 700:Q235B, Q235C,Q235D GB/T1591:Q345B, Q345C,Q3455D
ASTM A36 ASTM A572 Gr50
EN10025: S235JR, S235J0,S235J2 EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa) 360~510 470~630
6. Yield strength (t≤16mm) (Mpa) 355 235
7. Elongation (%) 20 24
8. Impact strength KV (J) 27(20°C)---Q235B(S235JR) 27(20°C)---Q345B(S355JR)
27(0°C)---Q235C(S235J0) 27(0°C)---Q345C(S355J0)
27(-20°C)---Q235D(S235J2) 27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
Welding
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard AWS D1.1
Marking
14. Method of marking of the members Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153
Test
17. Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test
Capacity
18. Maximum Production Capacity 50,000 TON per annum

Lattice Tower

32m/S 10meter Galvanised Lattice Tower Wind Turbine 032m/S 10meter Galvanised Lattice Tower Wind Turbine 1



Our Company

32m/S 10meter Galvanised Lattice Tower Wind Turbine 232m/S 10meter Galvanised Lattice Tower Wind Turbine 3

Hebei Chang Tong Steel Structure Co., Ltd.
located in the hometown of China Tower
, is a modern big-scale
professional company fabricating triangular communicationtower,
four-corner communication tower, cable tower, single-tube tower,
camouflage communication tower and transmission line
tower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.
Company always adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,
complete production equipment, reliable production process,
adopt advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The
equipment has a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for
production, which can fully meet the design and production
requirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our
customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our
products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and
Ireland
