Hebei Changtong Steel Structure Co., Ltd.
20 years of communication tower design and production experience
Provide comprehensive professional consulting services
Has served countless communication carriers

|
| Place of Origin: | China |
| Brand Name: | ChangTong |
| Certification: | ISO9001:2008 |
| Model Number: | JGT190409-2 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD1000-15000 |
| Packaging Details: | Container transpor, the general situation of the tower for metal reinforcement bind. |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000Tons/year |
| Product Name: | Camouflaged Tower | Material: | Angle SteelQ345/Q235 |
|---|---|---|---|
| Appearance Treatment: | Hot-dip Galvanized/powder Coated/painting | Height Of Tower: | 10m-50m/Customized |
| Connection Structure: | Flange Connection | Design Wind Speed: | 30m/s |
| Antenna Type: | GSM, RRU,CDMA, MW Etc. | Branch Type: | Pine/Palm |
| Lifetime: | More Than 30 Years | Name: | Bionic Beautification Bionic Tree Communication Camouflage Tower |
| High Light: | monopole camouflage cell tower,telecommunication camouflage cell tower,artificial tree camouflage cell tower |
||

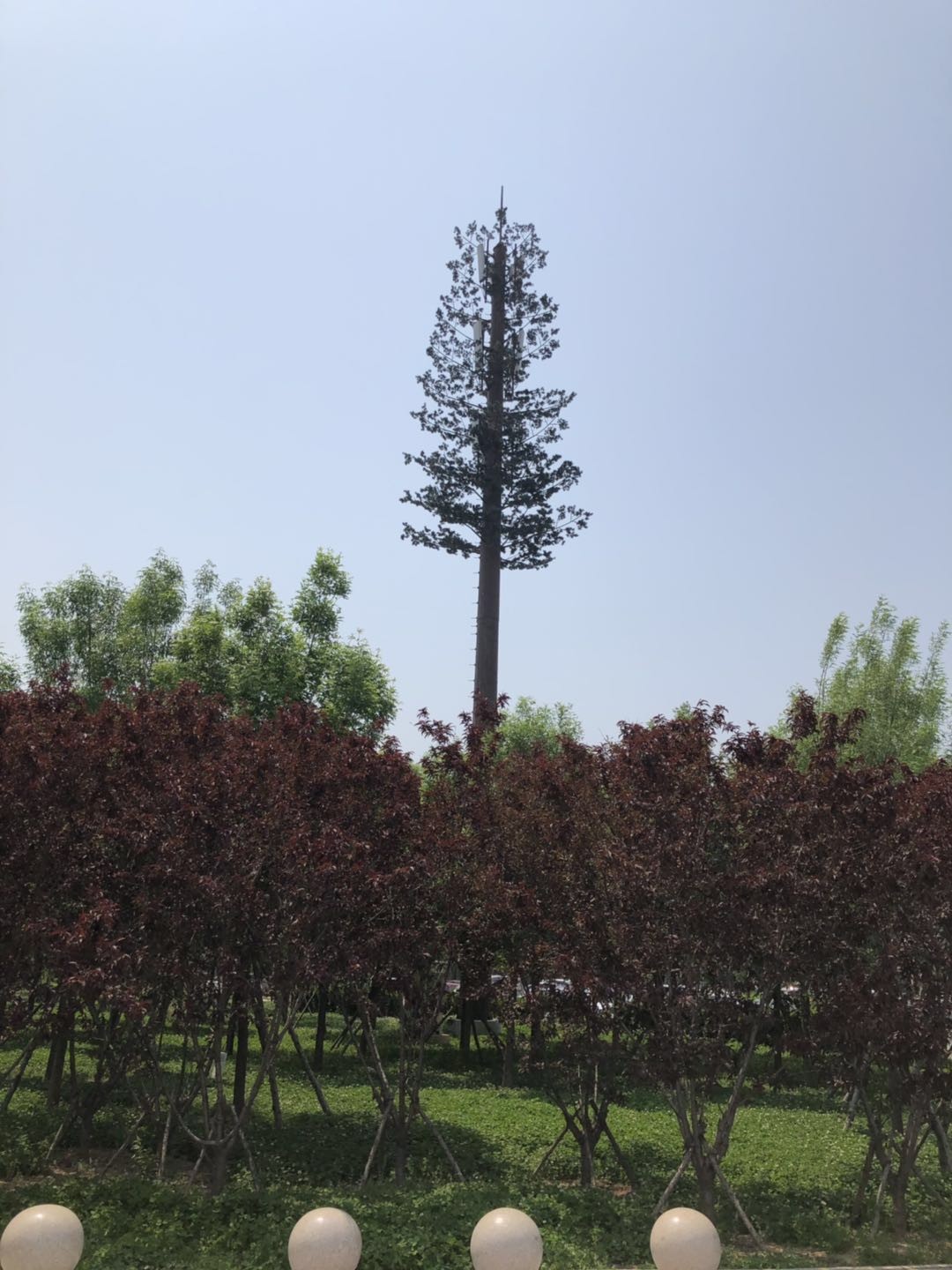

artificial tree telecommunication tower monopole camouflage pine tree
texture of material:
1. Main rod: single tube alloy steel member
2. Bark: composite polymer
3. Leaves: the leaves are made of UV resistant PU high performance flame retardant and environmental protection materials. Good corrosion resistance, aging resistance, high temperature resistance, flame retardant, more environmental protection, strong UV protection.
Applicable places: hotels, parks, commercial streets, squares, river courses, stations, ecological gardens, high-level residential areas and other occasions, beautify the environment, and they are enduring.
Product features:
1. Wind resistance and UV resistance, this tree type is suitable for outdoor selection of various places, can resist wind and UV.
2. Fire protection, the product reaches the class I flame retardant index, does not self ignition, does not support combustion, does not support the combustion characteristics, leaving the fire source to automatically extinguish.
3. Can be customized according to the requirements of various specifications. Meet different needs of customers. Beautiful appearance, high simulation, durable! The simulated bark with polymer is applied, with strong wave permeability and good flame retardant, reaching the I-grade flame retardant index, ensuring that it will not aging for 20 years! The leaves are made of UV resistant PU high performance flame retardant and environmental protection materials. Good corrosion resistance, aging resistance, high temperature resistance, flame retardant, more environmental protection, strong UV protection.
|
Height |
0-40m |
|
Materials |
Q345B and Q235 |
|
Wind speed |
0-180kph |
|
Foundation type |
Independent/raft foundation/pile foundation |
|
Tower body type |
Triangular |
|
Quality certifications |
ISO 9001:2008 and SGS |
|
Design standard |
GB/ANSI/TIA-222-G |
|
Galvanized |
Hot-dipped galvanized |
|
Connection structure |
Flange or slip joint |
|
Lifetime |
More than 30 years |
|
Earthquake intensity |
8° |
|
Ice coating |
5mm-10mm |
|
Vertical deviation |
1/1000 |
|
Optimal temperature |
-45 to +45°C
|
Camouflage Tower
The algae tree bark is molded from custom formulated polyurethane; approximately one and
a half pounds per square foot. The bark is made from molds created from actual algae tree bark.
The natural curve, cracks and texture of true bark is re-created in true to life detail. Artisans then finish the bark with appropriate painting and highlighting, creating a very naturalistic look.
As with all our poles, the bark is adhered to a pole that has already been hot dip galvanized
offering yet another layer of protection from the elements. With no maintenance required, the bark life expectancy is well over 30 years. If fading occurs over time the bark can easily be repainted.
Hebei Chang Tong Steel Structure Co., Ltd.
located in the hometown of China Tower, is a modern big-scale
professional company fabricating triangular communicationtower,
four-corner communication tower, cable tower, single-tube tower,
camouflage communication tower and transmission line
tower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.
Company always adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,
complete production equipment, reliable production process,
adopt advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The
equipment has a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for
production, which can fully meet the design and production
requirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our
customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our
products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and
Ireland
Contact Person: Anne Wang
Tel: 13383380238
