Hebei Changtong Steel Structure Co., Ltd.
20 years of communication tower design and production experience
Provide comprehensive professional consulting services
Has served countless communication carriers

|
| Place of Origin: | China |
| Brand Name: | ChangTong |
| Certification: | ISO9001:2008 |
| Model Number: | JGT190409-2 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD1000-15000 |
| Packaging Details: | Container transpor, the general situation of the tower for metal reinforcement bind. |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000Tons/year |
| Product Name: | Camouflaged Tower | Material: | Angle SteelQ345/Q235 |
|---|---|---|---|
| Appearance Treatment: | Hot-dip Galvanized/powder Coated/painting | Height Of Tower: | 10m-50m/Customized |
| Connection Structure: | Flange Connection | Design Wind Speed: | 30m/s |
| Antenna Type: | GSM, RRU,CDMA, MW Etc. | Branch Type: | Pine/Palm |

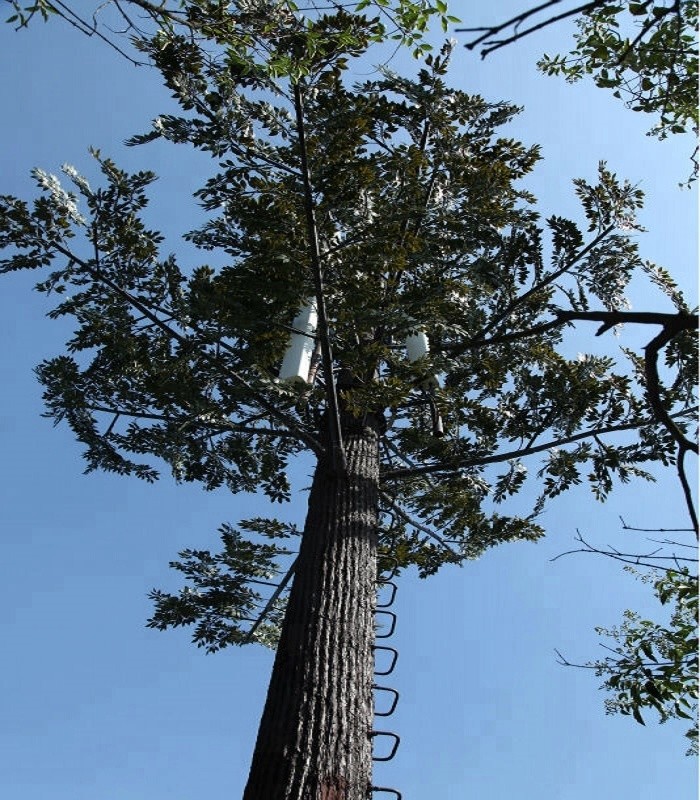

| Lifetime: | More Than 30 Years | Name: | Bionic Beautification Bionic Tree Communication Camouflage Tower |
| High Light: | 25m monopole telecom tower,camouflaged broadleaf ficus monopole telecom tower,monopole telecom tower hot dipped galvanized |
||
Products Features:
Available Height:10m-60M
Wind Pressure:50KM/H-280 KM/H
Branch Size: Branch A (L)3.2m*(W)1.3m ;Branch B (L)2.5m*(W)1.2m ;Branch C (L)2.0m*(W)1.1m ; Branch D (L)1.5m*(W)1.0m
Branch Support: removable or fixed
Material:main shaft :Q345B/S355JR/ASTM572;Spare parts:Q235B/S235JR/ASTM A36
Anchor bolts:grade 8.8 hot-dipped zinc galvanization
Zinc thickness: minimum 100um for main structure
Vivid appearance,less space ,easy to install
Structure:OSlip joint/Flange Joint
Lifetime:main shaft and steel parts more than 30 years;branches:minimum 5 years;barks: minimum 15 years
Delivery Lead Time: 35 Days after we receive deposit or LC
Antenna Loading Quantity Range:3-18 PCS
Microwave Dish loading Quantity Range :3-18 PCS
Working &Resting Platform Quantity Range:1-3 PCS
Concealed mounts available
Cable and Ladder: can be assembled by customer's request
Typically assembled and erected within a matter of hours
May be fitted with various combinations of feedline entry, feedline exit, and personal access ports
Cable line:supported on internal J-hooks
Earthing Cable and earthing bar : according to customer's request,generally our offer not including this part
Complete line of antenna mounts and accessories available
Provided with step bolts and cable-type safety climb system
Normal camouflaged pine tree tower including : lightning rod ,antenna support ,cable tray,microwave suppport ,platform ,main section shaft,connection bolts ,anchor bolts ,templates ,internal/external ladder ,branches and barks and etc
Aviation light: we can make it if customer request
| Height | 0-40 meters |
| Wind speed | 0-220 km/hr (3s gust) |
| Foundation type | Independent foundation/Raft foundation/Pile foundation |
| Geological condition | Soft ground/ Mountain ground/ Other |
| Shape | Circle/Polygon |
| Type | Single ploe |
| Connection type | Plugging / flange |
| Design code | Chinese relavtive regulation/American standard G/American standard F |
| Material grade | Q235/345/420/GR50/GR65 |
| Galvanized | Hot dip galvanization(86/65) |
| Design life | 30/50/100 years |
| Quality system | ISO 9001:2008/TL9000 |
Hebei Chang Tong Steel Structure Co., Ltd.
located in the hometown of China Tower, is a modern big-scale
professional company fabricating triangular communicationtower,
four-corner communication tower, cable tower, single-tube tower,
camouflage communication tower and transmission line
tower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.
Company always adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,
complete production equipment, reliable production process,
adopt advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The
equipment has a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for
production, which can fully meet the design and production
requirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our
customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our
products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and
Ireland
Contact Person: Anne Wang
Tel: 13383380238
