Hebei Changtong Steel Structure Co., Ltd.
20 years of communication tower design and production experience
Provide comprehensive professional consulting services
Has served countless communication carriers
 |
| Place of Origin: | China |
| Brand Name: | ChangTong |
| Certification: | ISO9001:2008 |
| Model Number: | JGT190409-2 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD1000-15000 |
| Packaging Details: | Container transport, according to customer requirements for reasonable packaging, the general situation of the tower for metal reinforcement bind. |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000Tons/year |
| Product Name: | Self Supporting Antenna 4g 4 Legged Tower 80m | Material: | Angle SteelQ345/Q235 |
|---|---|---|---|
| Surface Treatment: | Hot-dip Galvanized | Height: | 15m-80m/Customized |
| Wind Speed: | 30m/s | Quantity Of Platform: | 2/3/Customized |
| Antenna Type Of 4 Leg Angle Steel Tower: | GSM, RRU,CDMA, MW Etc. | Lifetime: | More Than 30 Years |
| Application: | Mobile Communication Tower | ||
| High Light: | 4g 4 legged tower,80m 4 legged tower,80m self supporting antenna tower |
||

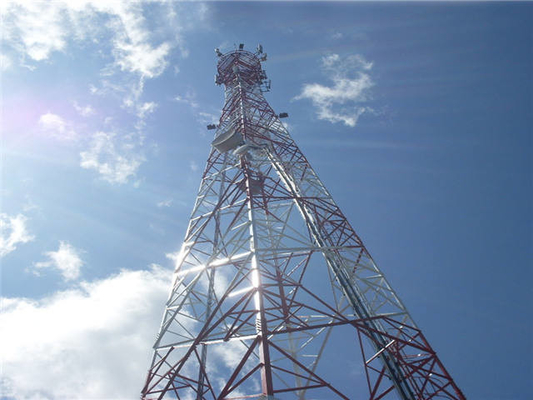

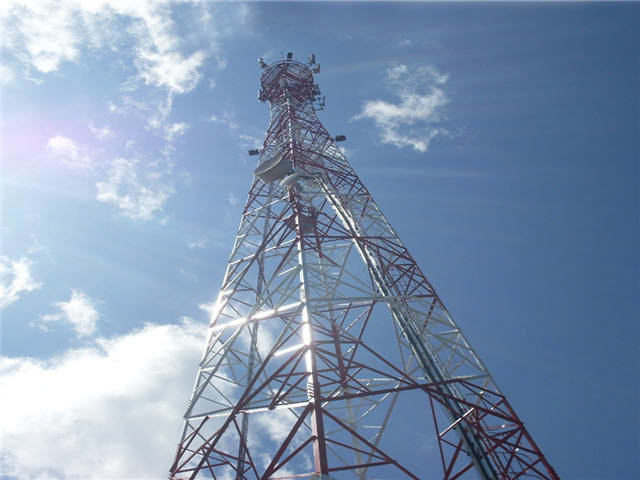

Outdoor 5G Telecom Microwave Antenna Galvanized 4-Legged Angular Steel Tower
[main function] it is mainly used for base station signal transmission.
[main purpose] it is used in China Mobile, China Unicom, telecom, iron tower company and railway communication company.
[structural form] mainly steel pipe and angle steel structure.
[structure content] Q235B steel or Q345B steel or 20# steel is generally used, all of which are hot-dip galvanized for anti-corrosion treatment, and the connecting bolts are grade 6.8. The tower top is equipped with lightning rod, and the lightning protection grounding resistance is less than or equal to 10 ohms.
[technical parameters] wind speed resistance: 30m / s, ice wrapping resistance: 8mm, seismic intensity: 8 degrees, working temperature: 35-55 ℃, perpendicularity: 1 / 1000.
[height dimension] 10m-50m.
[product features] round steel or angle steel is used as the tower column material, with small wind load coefficient and strong wind resistance. The tower column is connected by external flange or angle steel clad iron, and the bolts are tensioned, which is not easy to be damaged and reduces the maintenance cost.
[service life] 50 years
Lightning protection grounding resistance is less than or equal to 10 ohms.
[technical parameters] wind speed resistance: 30m / s, ice wrapping resistance: 8mm, seismic intensity: 8 degrees, working temperature: 35-55 ℃.
[height dimension] 10m-60m.
[service life] 30-50 years
[warranty period] 1-3 years
Product Name
| Communication tower | ||
| 1. Design Code | AST-101 | |
| Structure Steel | ||
| 2. Grade | Mild Steel | High Tensile Steel |
| GB/T 700:Q235B | GB/T1591:Q345B | |
| ASTM A36 | ASTM A572 Gr50 | |
| EN10025: S235JR | EN10025: S355JR | |
| 3. Design Wind Speed | 0-300KM/H | |
| 4. Allowable deflection | 0.5 ~1.0 degree at operational speed | |
| 5. Tension strength (Mpa) | 360~510 | 470~630 |
| 6. Yield strength (t≤16mm) (Mpa) | 355 | 235 |
| 7. Elongation (%) | 20 | 24 |
| Bolts & Nuts | ||
| 8. Grade | Grade 4.8, 6.8, 8.8 | |
| 10. Standards for mechanical properties | ||
| 10.1 Bolts | ISO 898-1 | |
| 10.2 Nuts | ISO 898-2 | |
| 10.3 Washers | ISO 6507-1 | |
| 12. Standard | AWS D1.1 | |
| Galvanizing | ||
| 14. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
| 15. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
Price Term: EXW, FOB, CFR or CIF and so on
Shipping port: Tianjin port
Payment Term: Usually 50% by T/T as deposit balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
Delivery Time: Usually 30-45 days after PO/drawing/prepayment confirmed.
Package: Normally we use steel wire to make the angle into bundle ,then use special material to protect the zinc, or according to client’s requirement.
Please provide drawings if you have so that we can calculate the accurate price for you.
We also provide design according to your requests, if you don't have drawings.
