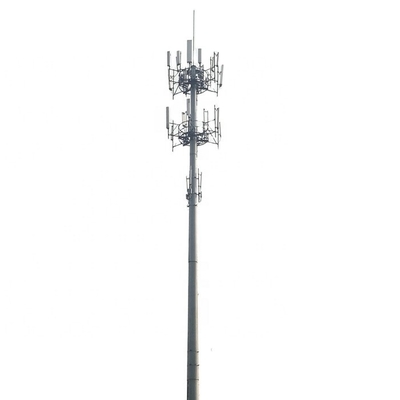

Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal

Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal

  • Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal
Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal
Product Details:
Place of Origin: China
Brand Name: ChangTong
Certification: ISO9001:2008
Model Number: DGT190311-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD1000-1500/Ton
Packaging Details: Container transpor, the general situation of the tower for metal reinforcement bind.
Delivery Time: 30-45days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20000Tons/year
Contact Now
Detailed Product Description
Material: Steel Q345/Q235 Appearance Treatment: Hot-dip Galvanized/powder Coated/painting
Height Of Tower: 15m-80m/Customized Connection Structure: Flange Connection/bolts Connection
Maximum Design Wind Speed: 32m/s Quantity Of Platform: 2/3/customized
Antenna Type: GSM, RRU,CDMA, MW Etc. Lifetime: More Than 30years
Design Sofaware: MS TOWER
High Light:

powder coated steel monopole tower

,

broadcasting steel monopole tower

,

4g monopole steel tower



Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal 0

35M Single Pole Mobile Phone Communication Antenna Monopole Tower



Monopole tower



Single tube tower is a practical and novel iron tower, which is adopted by the majority of construction units because of its beautiful appearance and small floor area. The tower body adopts more reasonable sections and is connected with strength bolts through connectors, so that the installation is convenient and fast, and can adapt to the installation of a variety of complex field sites. The built-in ladder and wiring mode can not only provide convenient operation environment for operators, but also prevent the feeder from sun and rain, greatly prolong the service life of the feeder, and the tower body will not be offset due to the installation of the feeder. The bottom of the tower body is fixed with double-layer nuts, and the structure can fine tune the verticality of the tower body.

Height

10-60m

Materials

Q345B and Q235

Wind speed

0-180kph

Foundation type

Independent/raft foundation/pile foundation

Tower body type

Triangular

Quality certifications

ISO 9001:2008 and SGS

Design standard

GB/ANSI/TIA-222-G

Galvanized

Hot-dipped galvanized

Connection structure

Flange or slip joint

Lifetime

More than 30 years

Earthquake intensity

Ice coating

5mm-10mm

Vertical deviation

1/1000

Optimal temperature

-45 to +45°C




Product Show

Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal 1Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal 2

Our Factory

Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal 3Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal 4

Overview

Quick Details
Place of Origin:
Hebei, China
Brand Name:CT
Model Number:
DGT190311-2
Product name:
Hot galvanized telecom monopole tower
Material:
SteelQ345/Q235
Appearance Treatment:
Hot-dip galvanized/powder coated/painting
Height of Tower:
15m-80m/Customized
Connection structure:
flange connection/bolts connection
Maximum Design Wind Speed:
32m/s
Quantity of Platform:
2/3/Customized
Antenna Type:
GSM, RRU,CDMA, MW etc.
Lifetime:
More than 30 Years
design software:
MS TOWER
Supply Ability
Supply Ability:
20000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
Container transpor, the general situation of the tower for metal reinforcement bind.
Port
TianJin Port
Lead Time :
Quantity(Tons) 1 - 10 >10
Est. Time(days) 20 To be negotiated



Product Show

Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal 5Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal 6



Production Process

Hebei Chang Tong Steel Structure Co., Ltd.
located in the hometown of China Tower
, is a modern big-scale professional company fabricating triangular communicationtower,
four-corner communication tower, cable tower, single-tube tower, camouflage communication tower and transmission line
tower.integrating design,fabrication and marketing,annual production capacity reaches more than 30,000 tons.
Company always adhere to the business strategy of "survive by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,complete production equipment, reliable production process,
adopt advanced CNC angle steel production line, CNC sheet production line and various supporting equipment. The
equipment has a first-class iron tower stakeout center, all of which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for production, which can fully meet the design and production requirements of various types of towers and substation structures.
Our steel tower products have won good reputation from our customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and Ireland.

Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal 7Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal 8

Detection

Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal 9

Cooperative units

Powder Coated Steel Monopole Tower Broadcasting / 4g / Cell Phone Signal 10
