Hebei Changtong Steel Structure Co., Ltd.
20 years of communication tower design and production experience
Provide comprehensive professional consulting services
Has served countless communication carriers
 |
| Place of Origin: | China |
| Brand Name: | ChangTong |
| Certification: | ISO9001:2008 |
| Model Number: | JGT190409-2 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD1000-15000 |
| Packaging Details: | Container transport, according to customer requirements for reasonable packaging, the general situation of the tower for metal reinforcement bind. |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000Tons/year |
| Product Name: | Angle Steel Tower | Material: | Angle SteelQ345/Q235 |
|---|---|---|---|
| Surface Treatment: | Hot-dip Galvanized | Height: | 15m-80m/Customized |
| Wind Speed: | 30m/s | Quantity Of Platform: | 2/3/Customized |
| Antenna Type Of 4 Leg Angle Steel Tower: | GSM, RRU,CDMA, MW Etc. | Lifetime: | More Than 30 Years |
| Application: | Mobile Communication Tower | ||
| High Light: | lattice 4 legged tower,microwave 4 legged tower,120m four legged tower |
||
Outdoor 5G Telecom Microwave Antenna Galvanized 4-Legged Angular Steel Tower

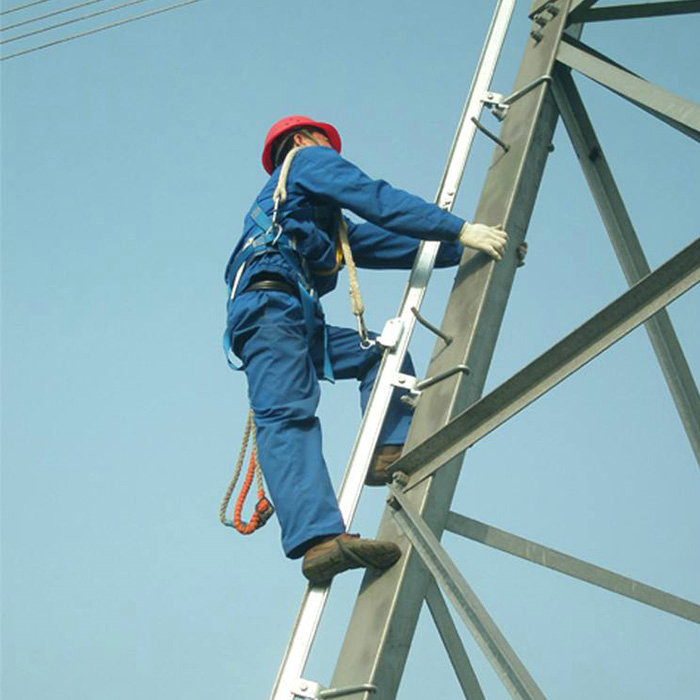

The communication tower is composed of tower body, platform, lightning rod, ladder, antenna support and other steel components, which are hot-dip galvanized for anti-corrosion treatment
It is used for transmission and transmission of microwave, ultrashort wave and wireless network signals.
| Communication tower | ||
| 1. Design Code | AST-101 | |
| Structure Steel | ||
| 2. Grade | Mild Steel | High Tensile Steel |
| GB/T 700:Q235B | GB/T1591:Q345B | |
| ASTM A36 | ASTM A572 Gr50 | |
| EN10025: S235JR | EN10025: S355JR | |
| 3. Design Wind Speed | 0-300KM/H | |
| 4. Allowable deflection | 0.5 ~1.0 degree at operational speed | |
| 5. Tension strength (Mpa) | 360~510 | 470~630 |
| 6. Yield strength (t≤16mm) (Mpa) | 355 | 235 |
| 7. Elongation (%) | 20 | 24 |
| Bolts & Nuts | ||
| 8. Grade | Grade 4.8, 6.8, 8.8 | |
| 10. Standards for mechanical properties | ||
| 10.1 Bolts | ISO 898-1 | |
| 10.2 Nuts | ISO 898-2 | |
| 10.3 Washers | ISO 6507-1 | |
| 12. Standard | AWS D1.1 | |
| Galvanizing | ||
| 14. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
| 15. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
Price Term: EXW, FOB, CFR or CIF and so on
Shipping port: Tianjin port
Payment Term: Usually 50% by T/T as deposit balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
Delivery Time: Usually 30-45 days after PO/drawing/prepayment confirmed.
Package: Normally we use steel wire to make the angle into bundle ,then use special material to protect the zinc, or according to client’s requirement.
Please provide drawings if you have so that we can calculate the accurate price for you.
We also provide design according to your requests, if you don't have drawings.
