|Place of Origin:||China|
|Minimum Order Quantity:||1piece|
|Packaging Details:||Container transport, according to customer requirements for reasonable packaging, the general situation of the tower for metal reinforcement bind.|
|Payment Terms:||L/C, T/T, Western Union|
|Product Name:||Angle Steel Tower||Material:||Q345/Q235|
|Surface Treatment:||Hot-dip Galvanized||Height:||15m-80m/Customized|
|Wind Speed:||30m/s||Quantity Of Platform:||2/3/Customized|
|Antenna Type Of 4 Leg Angle Steel Tower:||GSM, RRU,CDMA, MW Etc.||Lifetime:||More Than 30 Years|
|Application:||Mobile Communication Tower||Certification:||ISO9001:2008|
Free Standing Galvanized Steel Tower,
Triangle Galvanized Steel Tower,
3 Leg Galvanized Steel Tower

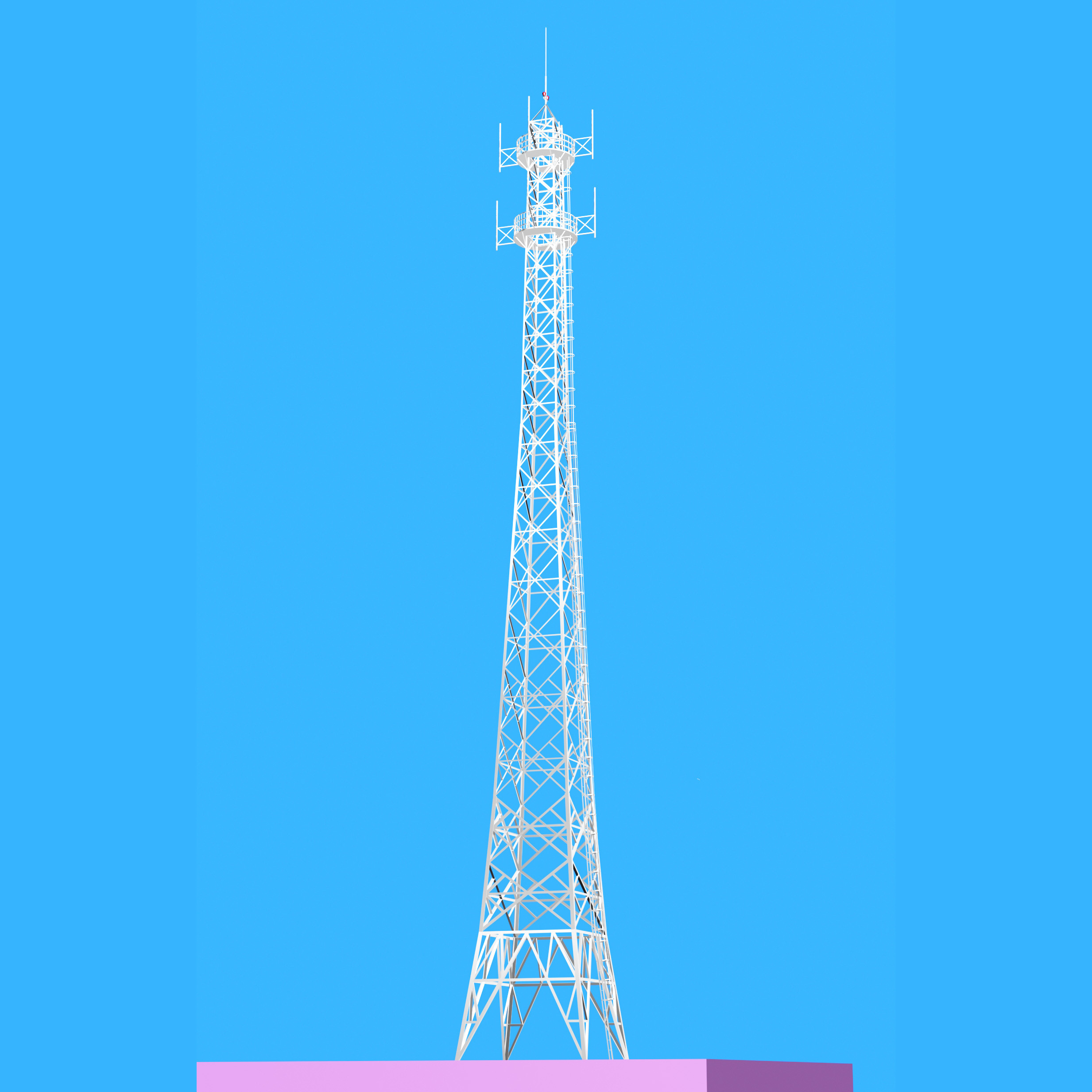

3 Leg Triangle Free Standing Cell Angle Lattice Galvanized Steel Telecom Communication Telecommunication Mast Tower
Our company is a professional steel tower manufacturer with ISO certificates based in China..
Supported by the team of professional engineers,technicians,skill workers,we are dedicated to providing our global customers with high quality telecom towers .
The detailed information is specified in the following table.We sincerely look forward to cooperating with you.
Place of Origin: Hebei, China (Mainland) ; Brand Name: CT or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.
3. Technical Data
|1. Design Code||TIA/EIA-222-G/F|
|2. Grade||Mild Steel||High Tensile Steel|
|GB/T 700:Q235B, Q235C,Q235D||GB/T1591:Q345B, Q345C,Q3455D|
|ASTM A36||ASTM A572 Gr50|
|EN10025: S235JR, S235J0,S235J2||EN10025: S355JR, S355J0,S355J2|
|3. Design Wind Speed||Up to 250 km/h|
|4. Allowable deflection||0.5 ~1.0 degree @ operational speed|
|5. Tension strength (Mpa)||360~510||470~630|
|6. Yield strength (t≤16mm) (Mpa)||355||235|
|7. Elongation (%)||20||24|
|8. Impact strength KV (J)||27(20°C)---Q235B(S235JR)||27(20°C)---Q345B(S355JR)|
|Bolts & Nuts|
|9. Grade||Grade 4.8, 6.8, 8.8|
|10. Standards for mechanical properties|
|10.1 Bolts||ISO 898-1|
|10.2 Nuts||ISO 898-2|
|10.3 Washers||ISO 6507-1|
|11. Standards for Dimensions|
|11.1 Bolts||DIN7990, DIN931, DIN933|
|11.2 Nuts||ISO4032, ISO4034|
|11.3 Washers||DIN7989, DIN127B, ISO7091|
|12. Method||CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)|
|13. Standard||AWS D1.1|
|14. Method of marking of the members||Hydraulic Press Stamping|
|15. Galvanization standard of steel sections||ISO 1461 or ASTM A123|
|16. Galvanization standard of bolts and nuts||ISO 1461 or ASTM A153|
|17. Factory test||Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test
|18. Maximum Production Capacity||50,000 TON per annum|
Hebei Chang Tong supply 4G Mobile single tube tower 4G communication angle steel tower 2019
Communication tower, the main structural form of four column angle steel structure, three column angle steel structure
[main function] it is mainly used for signal transmission.
[main purpose] it is used in China Mobile, China Unicom, China Telecom, China tower company and China Railway Communication Company.
[structure form] it is mainly angle steel structure.
[structure content] Q235B steel or Q345B steel or 20 ﹥ steel is generally used, all of which are hot-dip galvanized for anti-corrosion treatment, and the connecting bolts are grade 6.8. Lightning rod is set on the top of the tower, and the lightning protection grounding resistance is less than or equal to 10 ohm.
[technical parameters] wind speed resistance: 30m / s, ice coating resistance: 8mm, seismic intensity: 8 degrees, working temperature: 35-55 ℃, verticality: 1 / 1000.
[height dimension] 10m-50m.
[product features] round steel or angle steel is used as the tower material, with small wind load coefficient and strong wind resistance. The tower column is connected by outer flange or iron clad angle steel, and the bolt is tensioned, so it is not easy to damage, and the maintenance cost is reduced.
[service life] 30-50 years
[warranty period] 1-3 years
