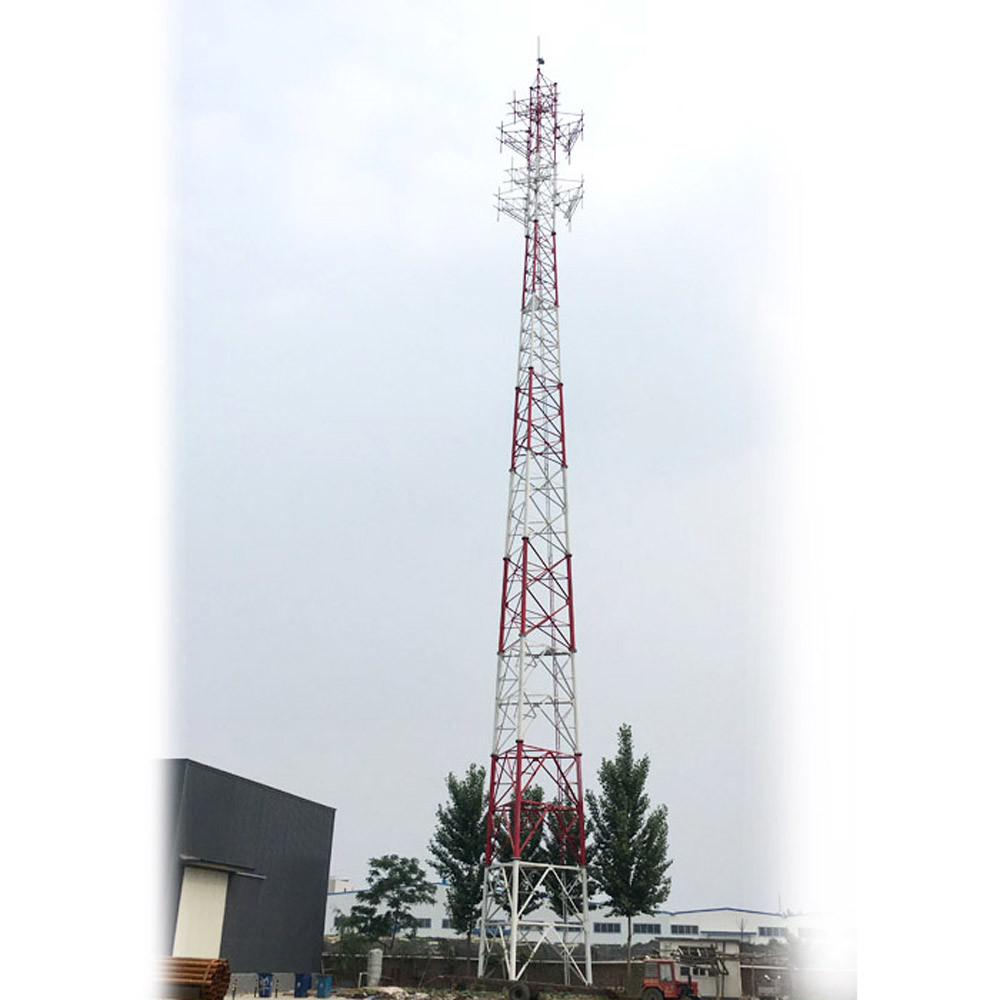

Triangular 5G Network Tubular Lattice Steel Towers

Triangular 5G Network Tubular Lattice Steel Towers

  • Triangular 5G Network Tubular Lattice Steel Towers
  • Triangular 5G Network Tubular Lattice Steel Towers
Triangular 5G Network Tubular Lattice Steel Towers
Product Details:
Place of Origin: China
Brand Name: ChangTong
Certification: ISO9001:2008
Model Number: JGT190409-2
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD1000-15000
Packaging Details: Container transpor, the general situation of the tower for metal reinforcement bind.
Delivery Time: 30-45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000Ton/year
Contact Now
Detailed Product Description
Material: Angle SteelQ345/Q235 Maximum Design Wind Speed: 36m/s
Quantity Of Platform: Quantity Of Platform Lifetime: More Than 30 Years
Application: Mobile Communication Tower Surface Treatment: Hot Dip Galvanized
Height: 10-80m Mounted: Vehicle
High Light:

5G Network Lattice Steel Towers

,

triangular Lattice Steel Towers

,

Tubular Lattice Steel Towers

Wholesale High Quality Communication Tubular Tower For 5G Communication Network

Product Description

Product features:
1. Three legs self supporting telecom towers are consisted of tube steel and accessory, and main materials are steel tube.
2. The section of tower is triangular, connected by inside flange, outside flange.
3. The ladder and rest platform can be set inside the tower, and communication equipments can also be set there with high safety.
4. According to the customers' choice, the ladder can be placed in any side.
5. With advanced international design concept and calculation method, tower slope can be adjusted in accordance with geology and climate.
6. Convenient and safe to install, small area covering, and easy to select site.


Service:

NO. Name provide
1 tower body Yes
2 flatform Yes
3 foundation NO
4 foundation bolt Yes
5 nuts and bolts Yes
6 lightning rod Yes
7 antenna brackets Yes
8 hot dip galvanized Yes
9 ladder Yes
10 lightning wire Yes
Our three legs self supporting telecom tower usually include above 10 parts, and actual product is provided as per buyer's requirements.

Transportation and Payment information
NO. Name
1 Accepted Delivery Terms FOB, CFR, CIF, EXW
2 Accepted Payment Currency USD, CNY
3 Accepted Payment Type T/T, L/C,Western Union, Cash
4 Minimum Order Value >US$ 1000 or >1 set
5 Nearest Port Tianjin Xingang,China

Requirements of our shipping and payment usually carried out in accordance with the above requirements, and of course, all these can be negotiated friendly.



Height 5m ~80 m
Suit for Airport ,seaport,plaza,stadium ,square,highway,street way etc
Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical
Material

Usually Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-3

Torlance of dimenstion +- 2%
Design detail Cable and Ladder inside or outside as request or design
Working &Resting Platform 1~3 pcs at the top or in the middle
Antenna Support 3-18 PCS
Microwave Dish 3-18 PCS
Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole
Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement
Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by
client required.

Joint of Poles Insert mode,innerflange mode,face to face joint mode
Design of pole Against earthquake of 8 grade
Wind Speed 5-300 KM/H
Minimum yield strength 355 mpa
Minimum ultimate tensile strength 490 mpa
Standard 620 mpa
Length of per section ISO 9001
Welding Within 14m once forming without slip joint


We has past flaw testing.Internal and external double welding makes the welding beautiful
in shape

Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness 1 mm to 30 mm
Production Process

Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension
verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization
or powder coating ,painting →Recalibration →Thread →Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can
following by client required , each 40HC or OT can loading how many pcs will calculation
base on the client actually specification and data.



Products Show


Triangular 5G Network Tubular Lattice Steel Towers 0Triangular 5G Network Tubular Lattice Steel Towers 1

Production Process

Triangular 5G Network Tubular Lattice Steel Towers 2Triangular 5G Network Tubular Lattice Steel Towers 3

Detection

Triangular 5G Network Tubular Lattice Steel Towers 4

Our Company

 Hebei Chang Tong Steel Structure Co., Ltd.
located in the hometown of China Tower
, is a modern big-scale
professional company fabricating triangular communicationtower,
four-corner communication tower, cable tower, single-tube tower,
camouflage communication tower and transmission line
tower.integrating design,fabrication and marketing,annual
production capacity reaches more than 30,000 tons.
Company always adhere to the business strategy of "survive
by quality, develop by credit, increase efficiency by science and
technology", continuously carry out technical transformation,
complete production equipment, reliable production process,
adopt advanced CNC angle steel production line, CNC sheet
production line and various supporting equipment. The
equipment has a first-class iron tower stakeout center, all of
which implement microcomputer lofting, which guarantees the
processing quality and provides a strong guarantee for
production, which can fully meet the design and production
requirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our
customers,including China tower,China mobile,China
unicom,China telecom,State grid and so on.In addition,our
products also were exported to many countries and
areas,including South American,Africa,Southeast Asia and
Ireland
