Hebei Changtong Steel Structure Co., Ltd.
20 years of communication tower design and production experience
Provide comprehensive professional consulting services
Has served countless communication carriers

|
| Place of Origin: | China |
| Brand Name: | ChangTong |
| Certification: | ISO9001:2008 |
| Model Number: | JGT190409-2 |
| Minimum Order Quantity: | 1piece |
|---|---|
| Price: | USD1000-15000 |
| Packaging Details: | Container transpor, the general situation of the tower for metal reinforcement bind. |
| Delivery Time: | 30-45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000Ton/year |
| Material: | Angle SteelQ345/Q235 | Maximum Design Wind Speed: | 36m/s |
|---|---|---|---|
| Quantity Of Platform: | Quantity Of Platform | Lifetime: | More Than 30 Years |
| Application: | Mobile Communication Tower | Surface Treatment: | Hot Dip Galvanized |
| Height: | 10-80m | Mounted: | Vehicle |
| High Light: | Q345 5g Internet Tower,Q345 Telecom Steel Tower,Hot DIP Galvanized 5g Internet Tower |
||
Description:

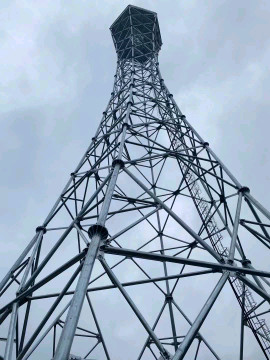

Angle steel tower refers to the self-supporting high-rise steel structure made of angle steel, which is the
earliest tower type applied by operators. The angle steel tower is divided into two types: floor iron tower
and roof iron tower, which are generally composed of foundation, tower foot, tower leg, tower body,
platform, lightning rod, antenna support and ladder. The floor iron tower is an iron tower installed on
the ground or on the ceiling of the machine room (one or two floors), with a height of 20 to 50 meters.
It can provide a high antenna height, and can also install various types of antennas, suitable for use in
suburbs and rural areas. The roof tower is an iron tower installed on the roof of the building, with a height
of 10 meters to 25 meters and a platform of one to three floors. It is characterized by stable structure and
is suitable for installing various types of antennas. When the building height is not enough, this erection
method is often used.
Angle steel tower is suitable for counties, towns, fields, hills, mountains and other areas with low landscape
requirements and easy land acquisition, and for areas with complex environment and difficult transportation.
Specifications:
| Material | Angle steel plates, flat steel plate, bolts and nuts |
| Steel Type | Weldable low carbon structural steel |
| Steel Grade | GB Q235, Q345, BS 4360, ASTM A36 etc. |
| Yield Strength | Fy≥235MPa |
| Tensile Strength | Fu≥400MPa |
| Elongation | σ≥20% |
| Surface Finish | Hot dip galvanization |
| Galvanized layer | T≥65μm |
| Height | 20m to 100m, customized to requests |
| Design | 4 legs self-supporting or free standing lattice tower |
| Structure | 1 to 5 platforms, each platform comes with 4 to 6 brackets for mounting antennas or specified number of brackets for mounting antennas, microwaves, RRUs and other devices. |
| Supply mode | CKD(Complete Knocked Down), SKD(Semi-Knocked Down), DKD(Direct Knocked Down) |
| Fixing/Fastening | Bolts and nuts, connecting plates |
| Configuration | Foundations/anchoring bolts, tower sections, 1-5 platforms (optional), mounting brackets, ladder, anti-fall safety system, lightning rod, earthing plate etc. |
| Wind Load | 0.35-1.0kN/sqm |
| Lifespan | 20-50 years |
| Warranty | 3 years |
| Applications | GSM/3G/4G/5G/FM radio antennas, microwaves, telecom stations. |
Feature Advantage:
The tower body is assembled with angle steel profiles and connected with bolts, which is convenient for installation;
Angle steel tower has large overall rigidity and strong bearing capacity;
Convenient processing, transportation and installation;
It can mount multiple antennas and microwave transmission equipment;
Angle steel tower has large overall rigidity and strong bearing capacity;
Mature technology application;
Hebei Chang Tong Steel Structure Co., Ltd.located in the hometown of China Tower, is a
modern big-scale professional company fabricating triangular communicationtower,
four-corner communication tower, cable tower, single-tube tower,camouflage
communication tower and transmission linetower.integrating design,fabrication
and marketing,annual production capacity reaches more than 30,000 tons.
Company always adhere to the business strategy of "surviveby quality, develop by credit,
increase efficiency by science andtechnology", continuously carry out technical transformation,
complete production equipment, reliable production process,adopt advanced CNC angle steel
production line, CNC sheetproduction line and various supporting equipment. The
equipment has a first-class iron tower stakeout center, all of which implement microcomputer
lofting, which guarantees the processing quality and provides a strong guarantee for production,
which can fully meet the design and productionrequirements of various types of towers and substation
structures.
Our steel tower products have won good reputation from our customers,including China tower,
China mobile,China unicom,China telecom,State grid and so on.In addition,our products also
were exported to many countries and areas,including South American,Africa,Southeast Asia and
Ireland
